Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the roof opening panel to the VENT position.
  2. Loosen the 4 roof opening panel glass screws.

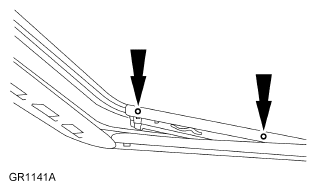

    Fig 1: Locating Roof Opening Panel Glass Screws
    G04622498Courtesy of FORD MOTOR CO.
  3. Close the roof opening panel glass.
    4. NOTE: The correct position of the roof opening panel glass to the roof panel should be -1.5 mm to 0 mm (-0.059 to 0 in) at the front edge and 0 mm to 1.5 mm (0 to 0.059 in) at the rear edge of the roof panel.
    Make sure the roof opening panel is centered in the roof opening.

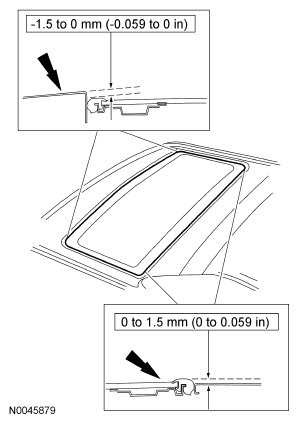

    Fig 2: Adjusting Roof Opening Panel Glass
    G04622499Courtesy of FORD MOTOR CO.
  4. Adjust the roof opening panel glass.
  5. Open the roof opening panel to the VENT position and tighten the 4 roof opening panel glass screws.

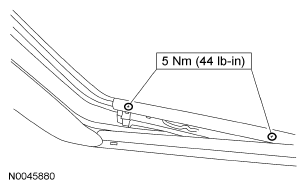

    Fig 3: Tightening Roof Opening Panel Glass Screws With Torque Specifications
    G04622500Courtesy of FORD MOTOR CO.
