Output Flange: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL

Courtesy of FORD MOTOR CO.	Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A)
Courtesy of FORD MOTOR CO.	Remover, Steering Wheel 211-014 (T67L-3600-A)

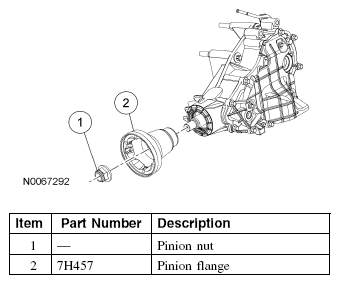

Fig 1: Identifying Pinion Flange And Nut

Courtesy of FORD MOTOR CO.
