Fuel Pump Module: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION

G04657704Courtesy of FORD MOTOR CO.
 Lock Ring Wrench 310-123
G04657705Courtesy of FORD MOTOR CO.
 Fuel Storage Tanker 164-R3202 or equivalent
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

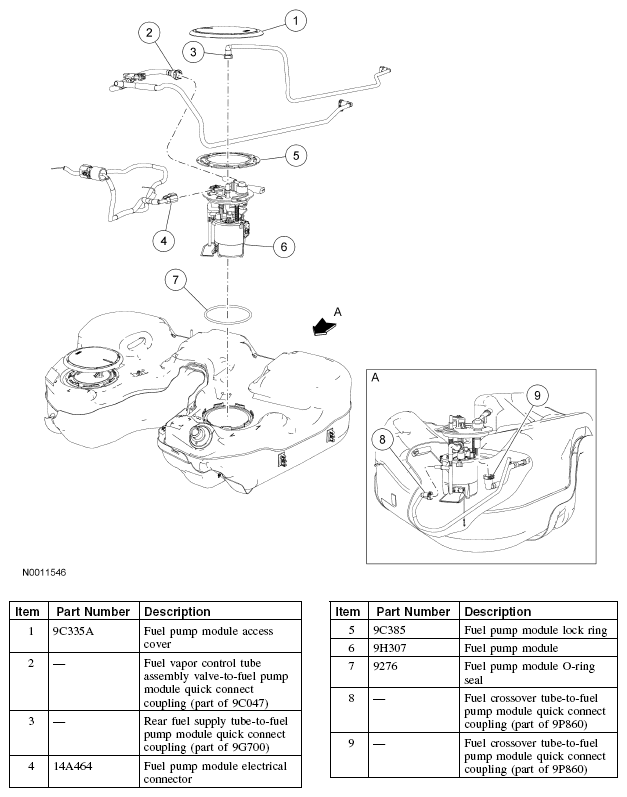

Fig 1: Identifying Fuel Pump Module Components
G04657706Courtesy of FORD MOTOR CO.
