Engine Front Cover: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION

G04679981Courtesy of FORD MOTOR CO.
 Remover, Oil Seal
303-409 (T92C-6700-CH)
G04679982Courtesy of FORD MOTOR CO.
 Installer, Front Oil Seal
303-096 (T74P-6150-A)
ITEM SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

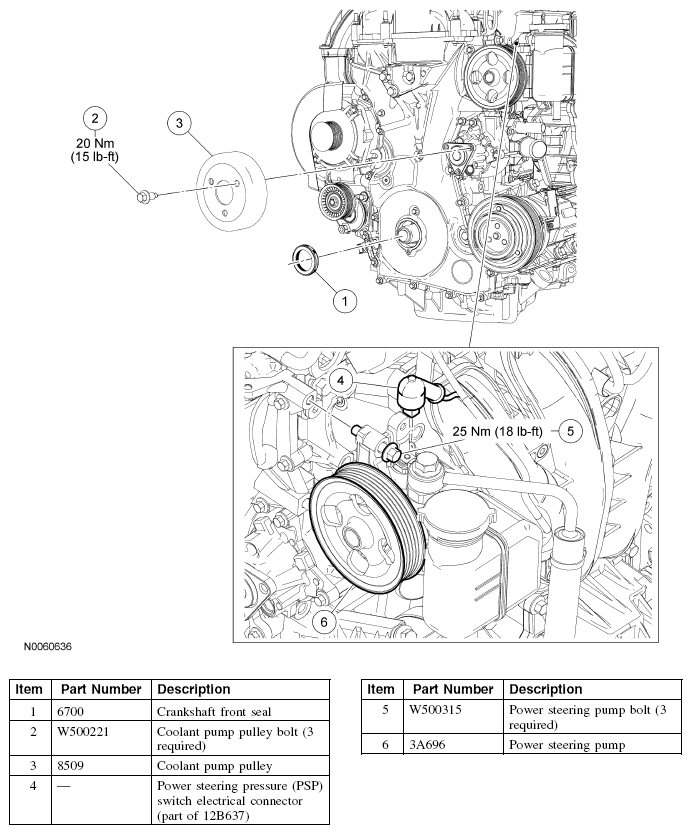

Fig 1: Engine Front Cover Replacement Components With Torque Specifications (Items 1--6)
G04679983Courtesy of FORD MOTOR CO.

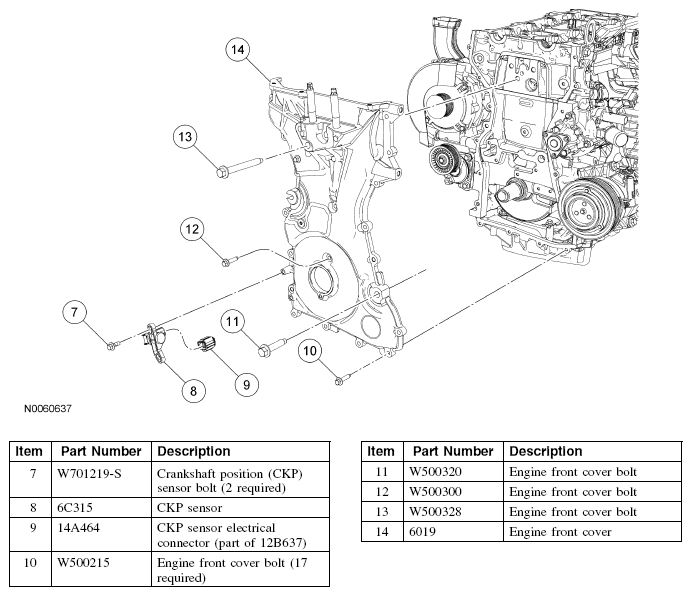

Fig 2: Identifying Engine Front Cover Components (Items 7-14)
G04679984Courtesy of FORD MOTOR CO.
