Engine Lubrication Components - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

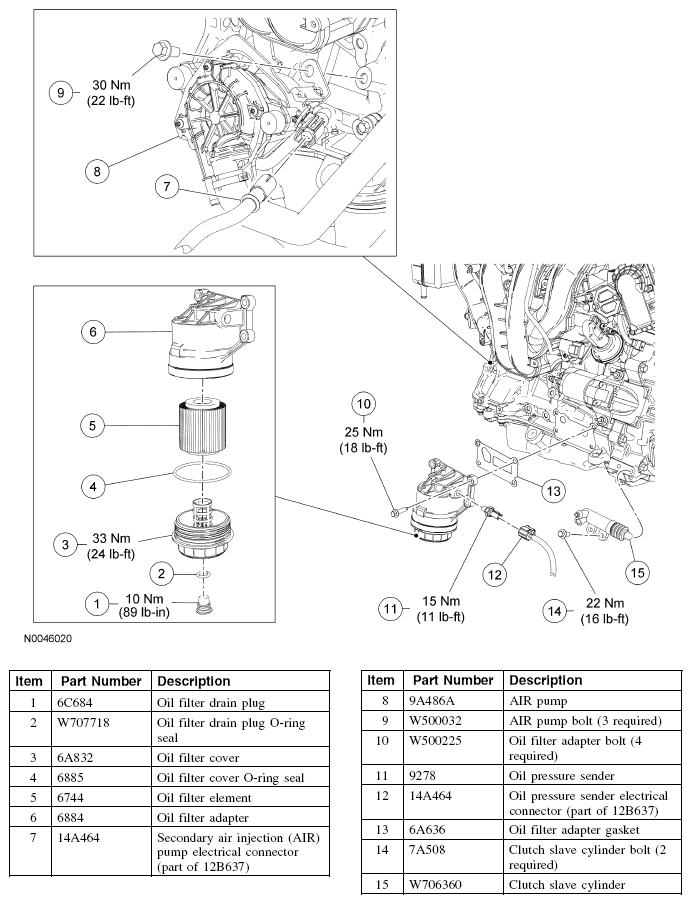

Fig 1: Exploded View Of Oil Filter Element, Oil Filter Adapter And Oil Pressure Sender With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Automatic transmission shown, manual transmission similar.

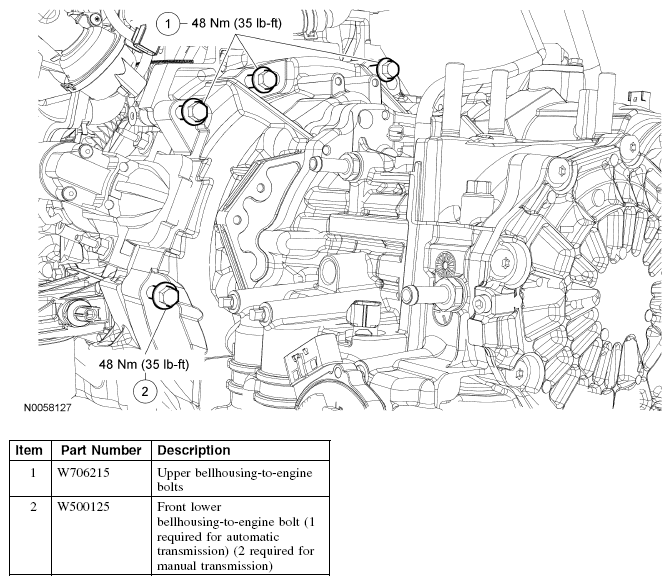

Fig 2: Exploded View Of Oil Pan, Oil Pump Screen And Pickup Tube With Torque Specifications (Items 1-2)

Courtesy of FORD MOTOR CO.

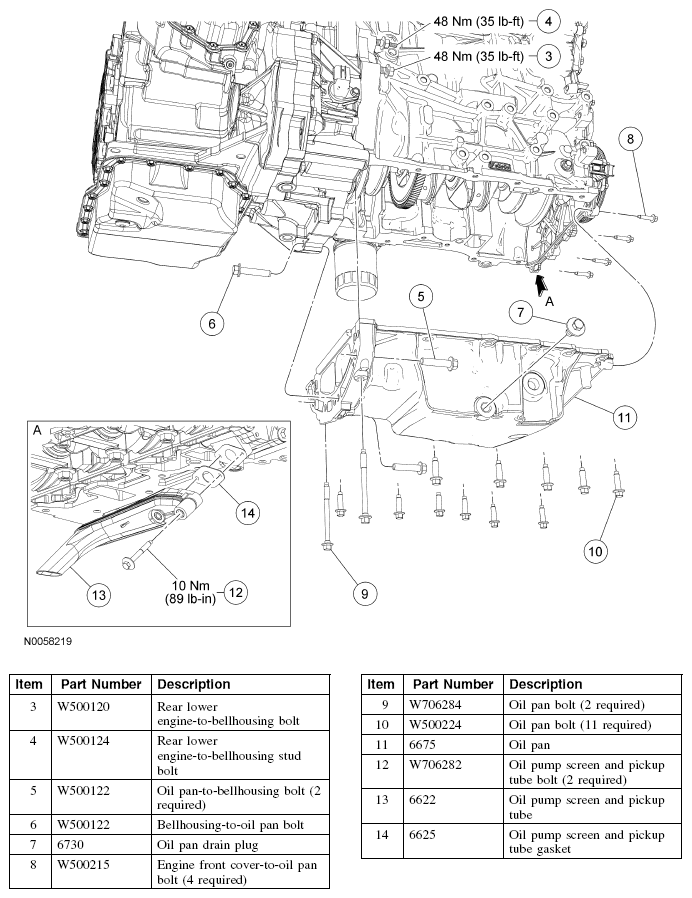

Fig 3: Exploded View Of Oil Pan, Oil Pump Screen And Pickup Tube With Torque Specifications (Items 3-14)

Courtesy of FORD MOTOR CO.

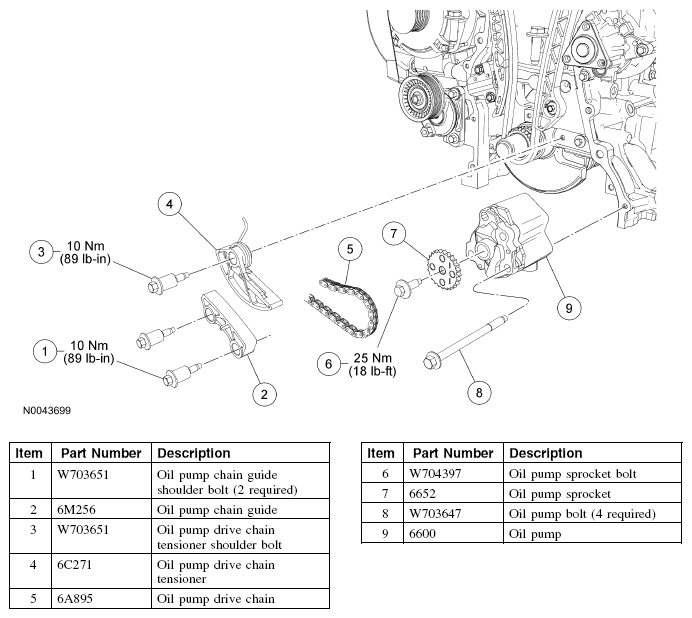

Fig 4: Exploded View Of Oil Pump With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
