Valve Cover: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

ITEM SPECIFICATION

Item	Specification
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

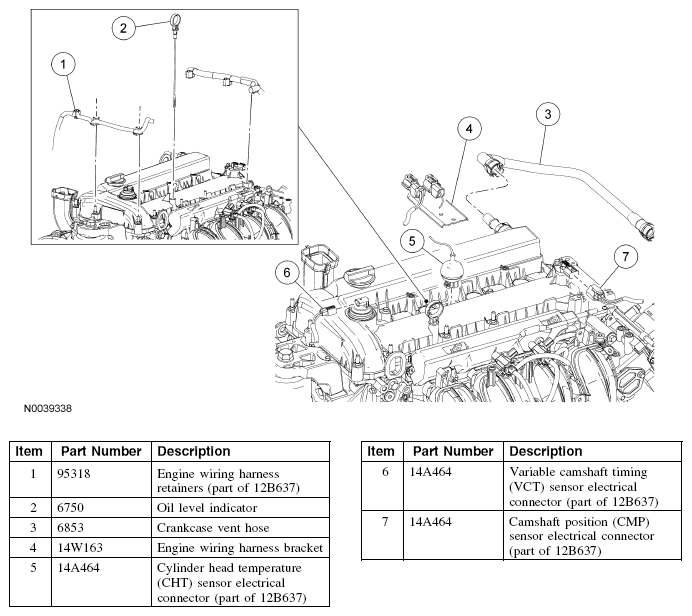

Fig 1: Identifying Valve Cover Components (Items 1-7)

Courtesy of FORD MOTOR CO.

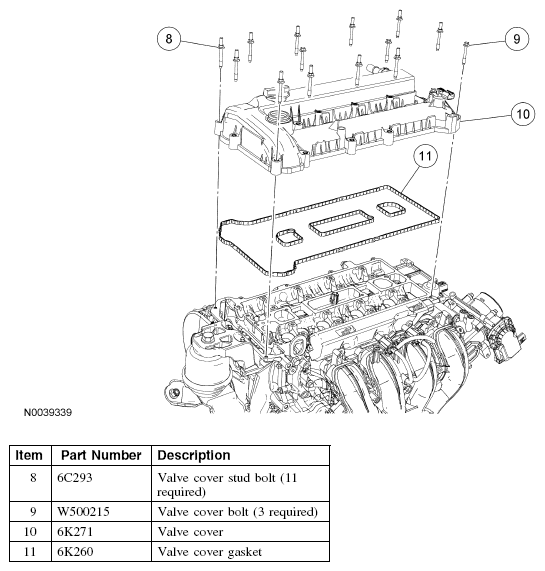

Fig 2: Identifying Valve Cover Components (Items 8-11)

Courtesy of FORD MOTOR CO.
