Transaxle Support Insulator: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS REFERENCE

Courtesy of FORD MOTOR CO.	Universal Adapter Brackets 014-0001
Courtesy of FORD MOTOR CO.	Lifting Bracket, Engine 303-050 (T70P-6000)
Courtesy of FORD MOTOR CO.	Support Bar, Engine 303-290A
Courtesy of FORD MOTOR CO.	Adapters for 303-290 303-290-01
Courtesy of FORD MOTOR CO.	Adapter for 303-290A (Support Leg) 303-290A-03A
Courtesy of FORD MOTOR CO.	Adapter for 303-290A (Lifting Hook) 303-290A-12

MATERIAL SPECIFICATIONS

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

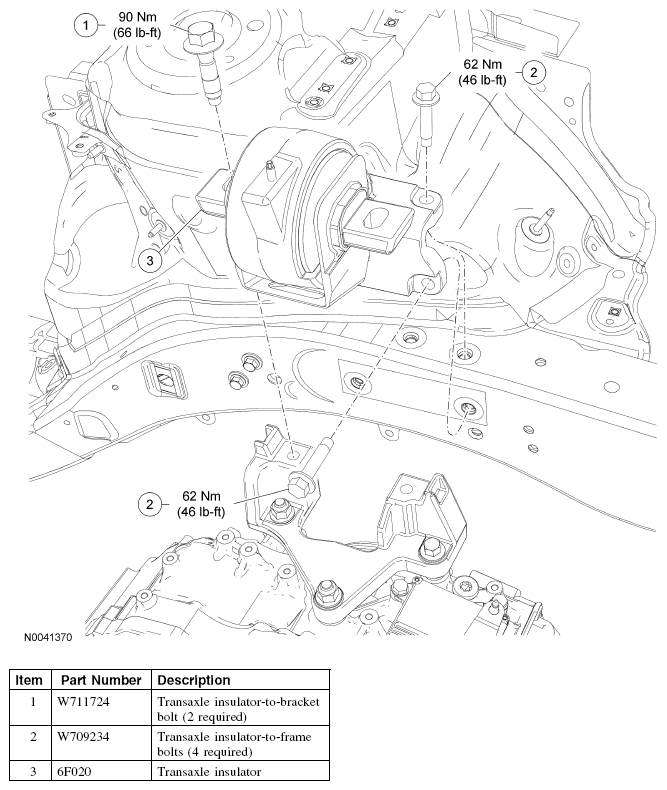

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications

Courtesy of FORD MOTOR CO.
