Output Shaft: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04682186Courtesy of FORD MOTOR CO.
Axle Bearing/Seal Plate
205-090 (T75L-1165-B)
G04682187Courtesy of FORD MOTOR CO.
Bearing Cone Replacer
307-181 (T87C-77000-D)
G04682188Courtesy of FORD MOTOR CO.
Bearing Cone Replacer
308-155 (T88C-7025-DH)
G04682189Courtesy of FORD MOTOR CO.
Bearing Puller
205-D064 (D84L-1123-A) or equivalent
G04682190Courtesy of FORD MOTOR CO.
Dial Indicator Gauge with Holding Fixture
100-002 (TOOL-4201-A)

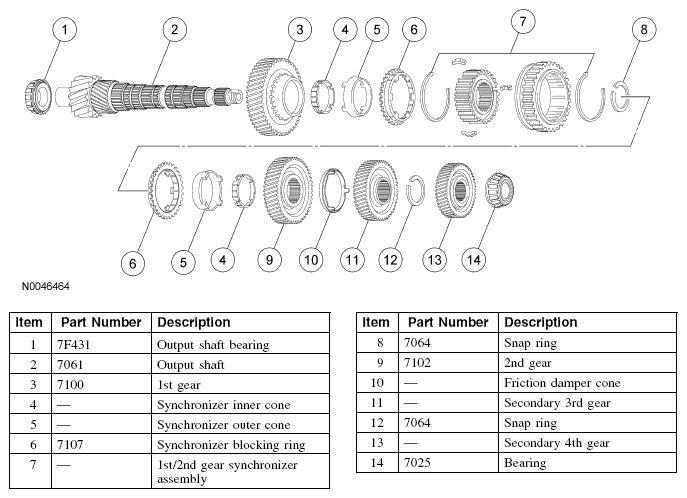

Fig 1: Identifying Output Shaft Components
G04682191Courtesy of FORD MOTOR CO.
