Driver Air Bag Module: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.

WARNING: Carry a live air bag module with the air bag and trim cover pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.

WARNING: Do not set a live air bag module down with the trim cover face down. This will reduce the risk of injury in the event of an accidental deployment.

WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.

WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.

WARNING: To reduce the risk of personal injury, do not use any memory saver devices.

NOTE: If a seat equipped with a SRS component is being serviced, the SRS must be depowered.

NOTE: The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a SRS fault.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

Depower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .

NOTE: Repeat this step for both locking pins.

Fig 1: Locating Allen Wrench

Courtesy of FORD MOTOR CO.

Using a 3-mm Allen wrench or a suitable tool through the access hole on the backside of the steering wheel, position the tool against the spring clip and push in, disengaging the clip from the locking pin. With the spring clip disengaged from the locking pin, gently pull back on that side of the driver air bag module to release it from the steering wheel.

CAUTION: Do not pull the driver air bag module electrical connectors out by the locking buttons. Damage to the locking buttons can occur.

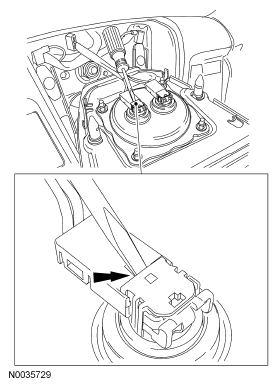

Fig 2: Locating Electrical Connectors

Courtesy of FORD MOTOR CO.

Using a small screwdriver as shown, lift up and release the locking buttons on the driver air bag module electrical connectors. With the locking buttons released, remove the electrical connectors and the driver air bag module.
