Instrument Panel - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fusion shown, Milan similar.

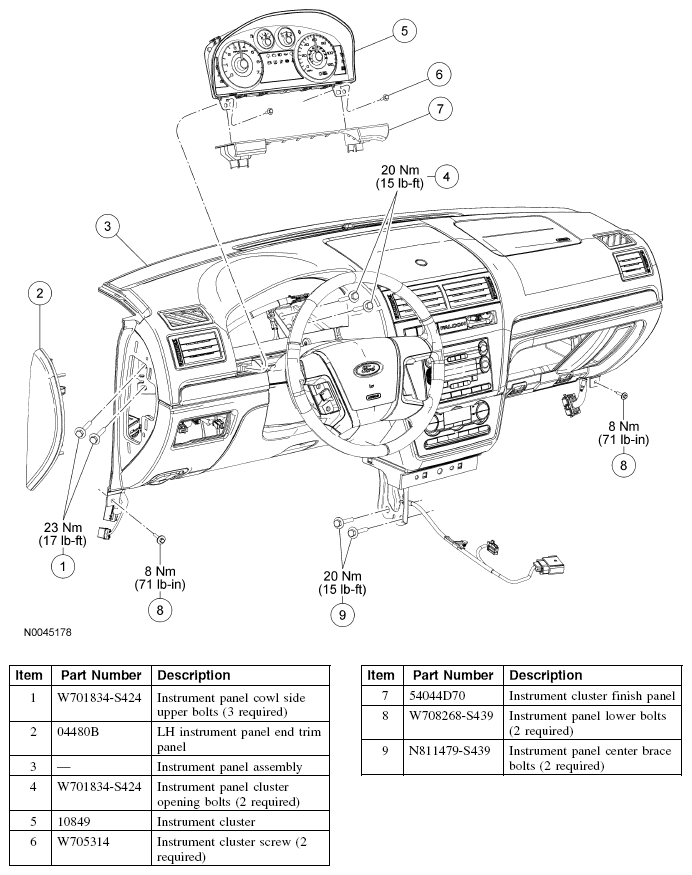

Fig 1: Exploded View Of Instrument Panel - Fusion/Milan

Courtesy of FORD MOTOR CO.

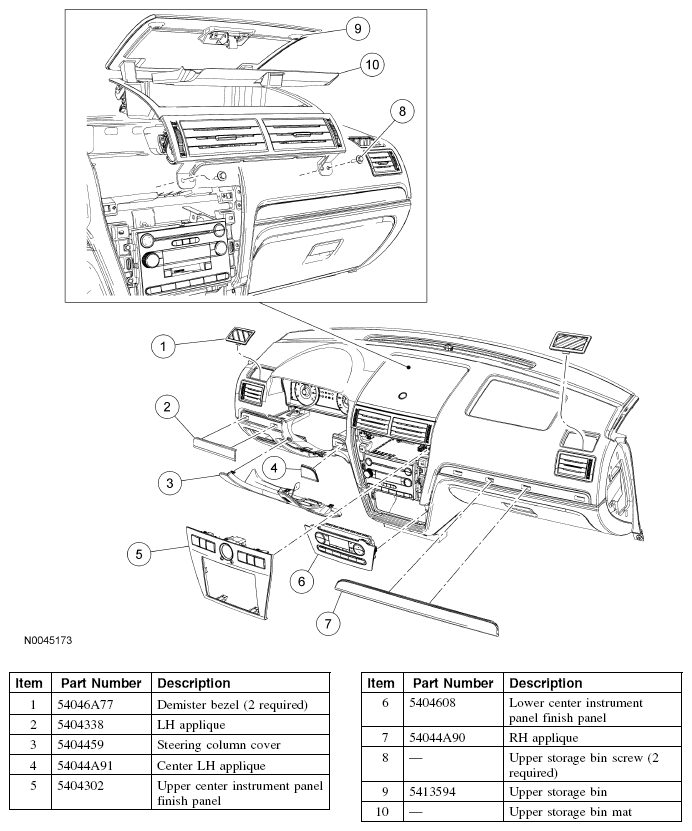

Fig 2: Exploded View Of Instrument Panel - Fusion/Milan Instrument Panel Finish Panels

Courtesy of FORD MOTOR CO.

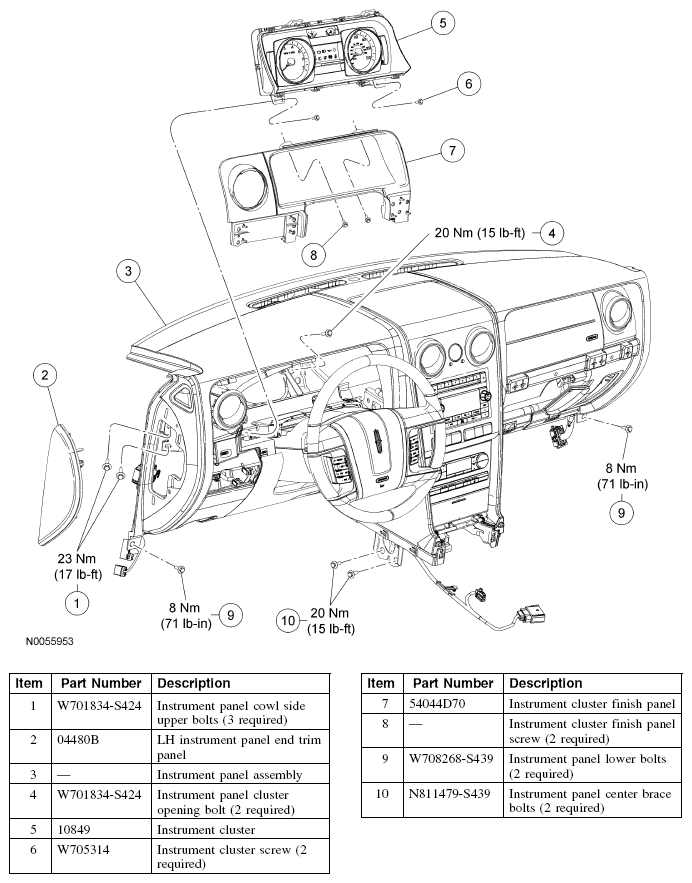

Fig 3: Exploded View Of Instrument Panel - Zephyr

Courtesy of FORD MOTOR CO.

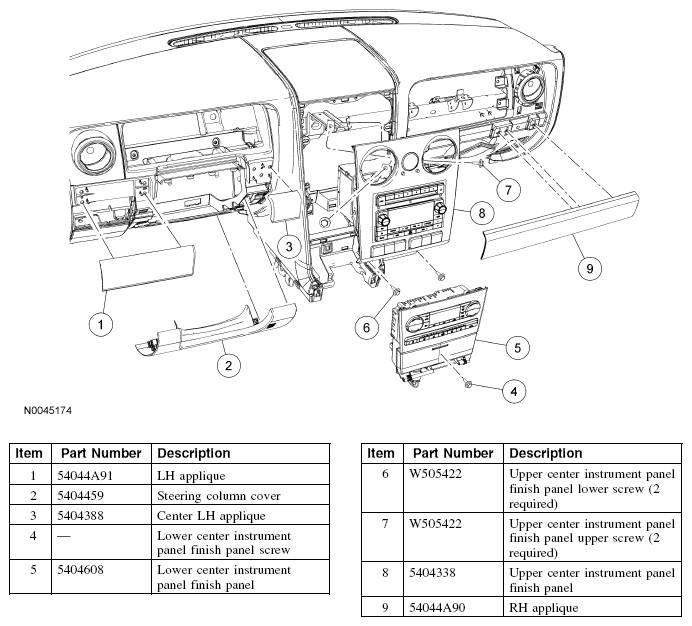

Fig 4: Exploded View Of Instrument Panel - Zephyr Instrument Panel Finish Panels

Courtesy of FORD MOTOR CO.

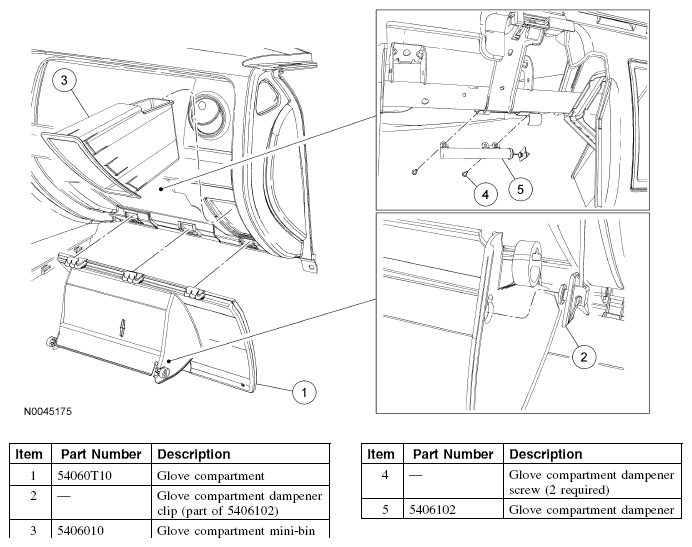

Fig 5: Identifying Glove Compartment Remove/Install Components

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
