Instrument Panel - Exploded View

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

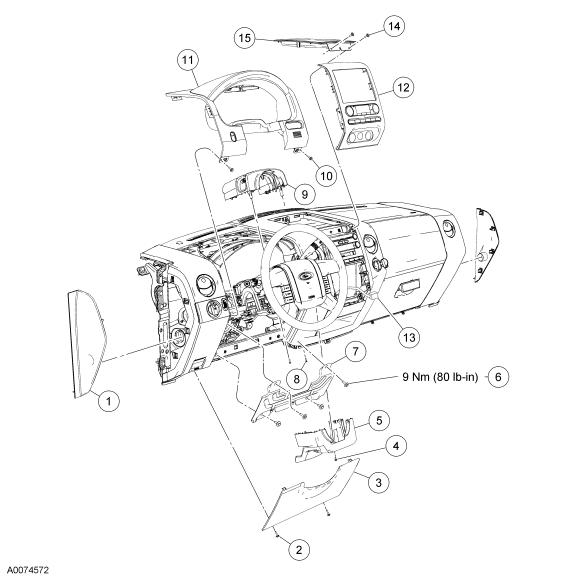

Fig 1: Exploded View Of Instrument Panel With Torque Specifications (1 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1504480 RH/ 1504481 LH	Instrument panel side finish panel
2	W707628	Steering column opening trim screw (2 required)
3	15044F08	Steering column opening trim
4	W504041-S437	Lower steering column cover screw
5	3K512	Lower steering column cover
6	W505423-S439	Steering column opening panel screw (4 required)
7	15017A26	Steering column opening panel
8	W505932	Upper steering column cover screw (2 required)
9	3C695	Upper steering column cover
10	W707628	Instrument cluster finish panel screw (2 required)
11	15044D70	Instrument cluster finish panel
12	1504302	Instrument panel center finish panel
13	14401	Climate control electrical connector
14	W707628	Instrument cluster center finish panel screw (2 required)
15	1504302	Instrument cluster center finish panel

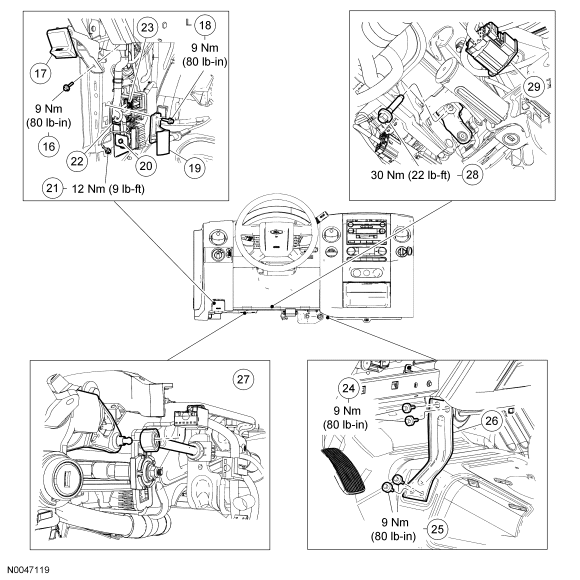

Fig 2: Exploded View Of Instrument Panel With Torque Specifications (2 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
16	N805375	Parking brake release handle bolt
17	2783	Parking brake release handle
18	N805375	Hood release handle bolt
19	16B975	Hood release handle
20	14A005	Electrical connector
21	N805375	Ground bolt
22	14A005	Electrical connector
23	14A005	Electrical connector
24	N807658-S438	Center brace bolts (2 required)
25	N807658-S438	Center brace bolts (2 required)
26	15045B00	Center brace
27	7E395	Transmission range indicator cable
28	N808684-S101	Pinch bolt
29	14A005	Electrical connector

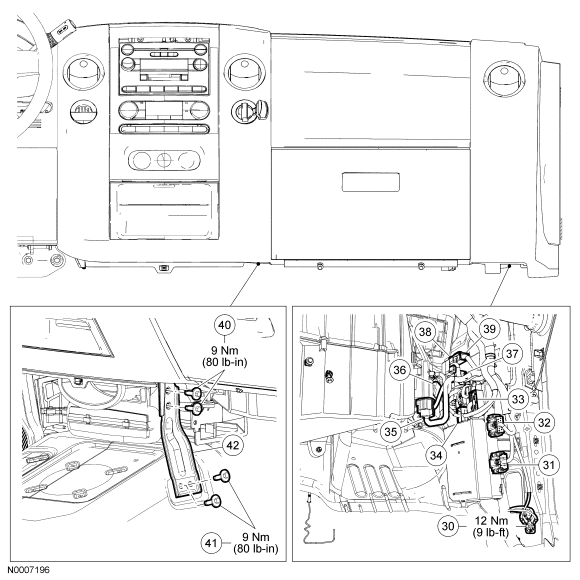

Fig 3: Exploded View Of Instrument Panel With Torque Specifications (3 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
30	N805375	Ground bolt
31	14401	PDB B1 Electrical connector
32	14401	PDB B2 Electrical connector
33	14401	PDB L1 Electrical connector
34	14401	PDB L2 Electrical connector
35	14401	ETAC Electrical connector
36	14401	Instrument panel electrical connector
37	14401	Instrument panel electrical connector
38	14401	Instrument panel electrical connector
39	14401	Instrument panel electrical connector
40	N807658-S438	Center brace bolts (2 required)
41	N807658-S438	Center brace bolts (2 required)
42	15045F38	Center brace

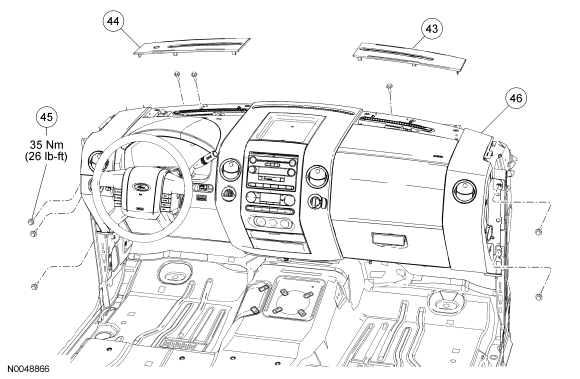

Fig 4: Exploded View Of Instrument Panel With Torque Specifications (4 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
43	15046B62	Defrost grille (RH)
44	15046B63	Defrost grille (LH)
45	W706248- S437M	Instrument panel bolt (9 required)
46	15011201	Instrument panel

For additional information, refer to the procedures in this article.
