Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the roof opening panel to the VENT position.
  2. Loosen the 4 roof opening panel glass screws.
    3. Fig 1: Roof Opening Panel Glass Screws
    GF0023894Courtesy of FORD MOTOR CO.
  3. Close the roof opening panel glass.
    4. NOTE: The correct position of the roof opening panel glass to the roof panel should be -1.5 mm to 0 mm (-0.059 to 0 in) at the front edge and 0 mm to 1.5 mm (0 to 0.059 in) at the rear edge of the roof panel.

    Make sure the roof opening panel is centered in the roof opening.

  4. Adjust the roof opening panel glass.

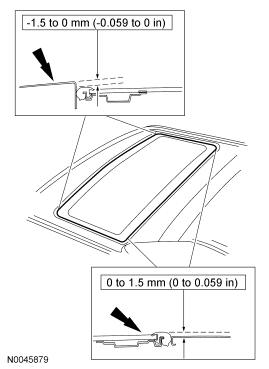

    5. Fig 2: Roof Opening Panel Glass Adjustments (With Specifications)
    GF0023895Courtesy of FORD MOTOR CO.
  5. Open the roof opening panel to the VENT position and tighten the 4 roof opening panel glass screws.
    6. Fig 3: Roof Opening Panel Glass Screws (With Specifications)
    GF0023896Courtesy of FORD MOTOR CO.
