Instrument Cluster: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

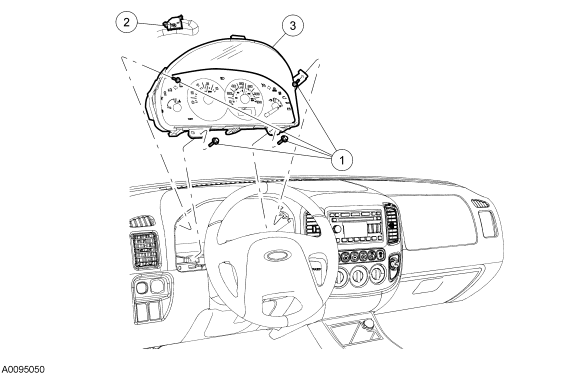

Fig 1: Exploded View Of Instrument Cluster

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705314	Instrument cluster screws (4 required)
2	-	Electrical connector (part of 14401)
3	10849	Instrument cluster
