Antenna Base: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

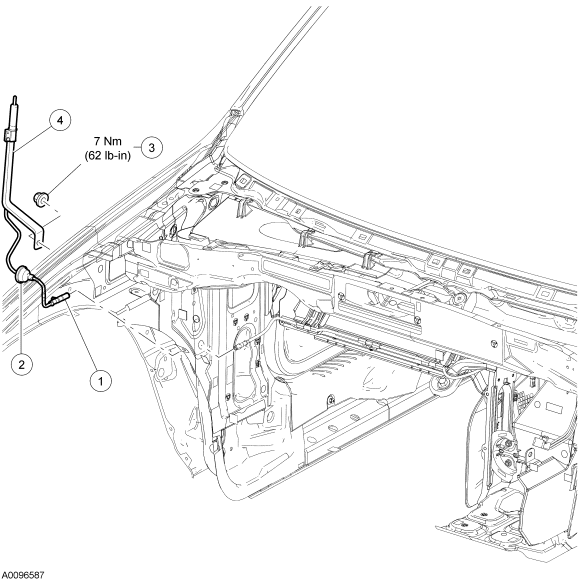

Fig 1: Exploded View Of Antenna Base With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Antenna cable connection (part of 18A984)
2	-	Grommet (part of 18A984)
3	-	Antenna base mounting nut
4	18A984	Antenna base assembly
