Speaker Enclosure: Notes
WARNING:
This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

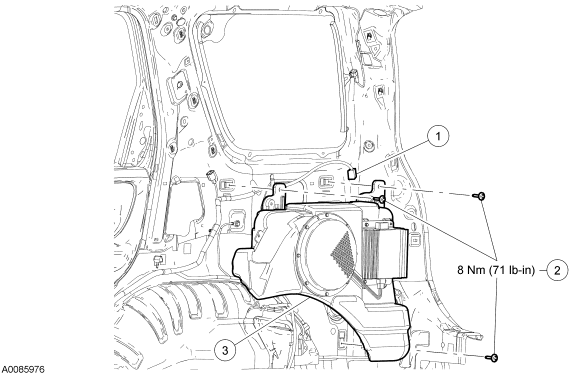

Fig 1: Exploded View Of Speaker Enclosure With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
18C808
Subwoofer amplifier electrical connector
2
W520802
Speaker enclosure bolts (3 required)
3
19A069
Speaker enclosure
