Parking Aid Module: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

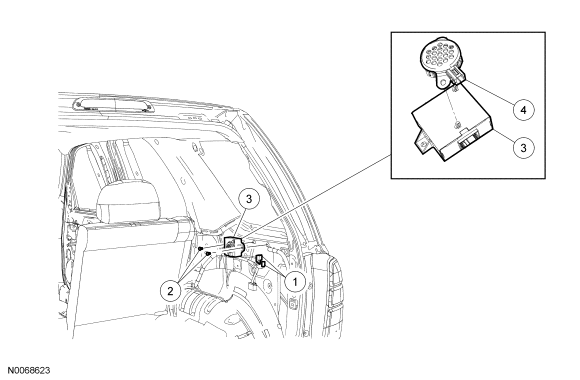

Fig 1: Exploded View Of Parking Aid Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electrical connector (part of 14405)
2	-	Parking aid module screws (2 required)
3	15T850	Parking aid module
4	15A866	Parking aid speaker
