Removal And Installation

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

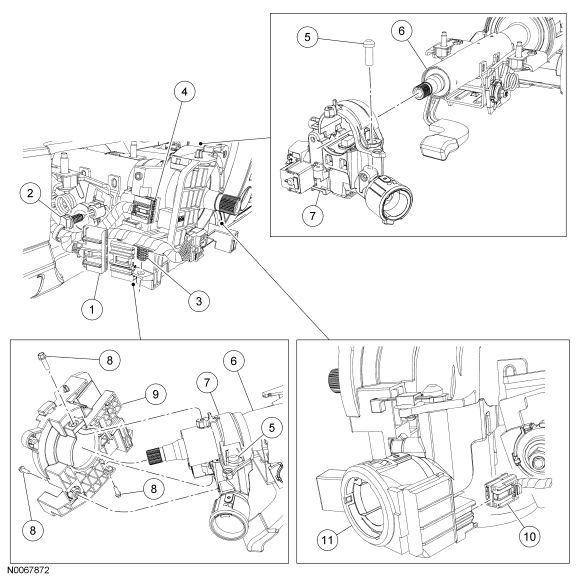

Fig 1: Steering Column Lock Module Components
GF0042527Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Ignition switch electrical connector (part of 14401)
2 - Electrical harness pin-type retainer (part of 14401)
3 - Electrical harness pin-type retainer (part of 14401)
4 - Multi-function switch electrical connector (part of 14401)
5 12049 Steering column lock module bolt
6 3C529 Steering column
7 3F642 Steering column lock module
8 W504142 Multi-function switch carrier bolts (3 required)
9 3F791 Multi-function switch carrier
10 - Passive anti-theft system (PATS) transceiver electrical connector (if equipped) (part of 14401)
11 15607 PATS transceiver (if equipped)
CAUTION: Do not remove the ignition lock cylinder and the ignition switch at the same time or damage to the column may result.

All vehicles

  1. Remove the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
  2. Disconnect the multi-function switch electrical connector.
  3. Disconnect the ignition switch electrical connector.
  4. Detach the 2 electrical harness pin-type retainers.
  5. Remove the 3 multi-function switch carrier bolts.
    • Remove the multi-function switch and carrier as an assembly.
  6. Vehicles equipped with passive anti-theft system (PATS)

  7. Disconnect the passive anti-theft system (PATS) transceiver electrical connector.
  8. Remove the PATS transceiver.
  9. All vehicles

  10. Remove the lock cylinder. For additional information, refer to HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS article.
  11. Position the steering column to the full downward position to access the lock module bolt.
  12. NOTE: Clean all metal shavings and foreign material after cutting a slot into the steering column lock module bolt.
  13. Cut a slot into the head of the steering column lock module bolt.
  14. Remove and discard the steering column lock module bolt.
    • To install, tighten the new bolt until the head of the bolt shears off.
  15. Remove the steering column lock module.
  16. To install, reverse the removal procedure.
    • Align the ribs on the steering column lock module with the window of the steering column tube.
