Wheel Alignment Specifications

WARNING: This page is about a different car, the 2003 Lincoln Blackwood, 2003 Ford Pickup, 2002 Lincoln Blackwood, and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Wheel Alignment Specifications (Blackwood)

Courtesy of FORD MOTOR CO.

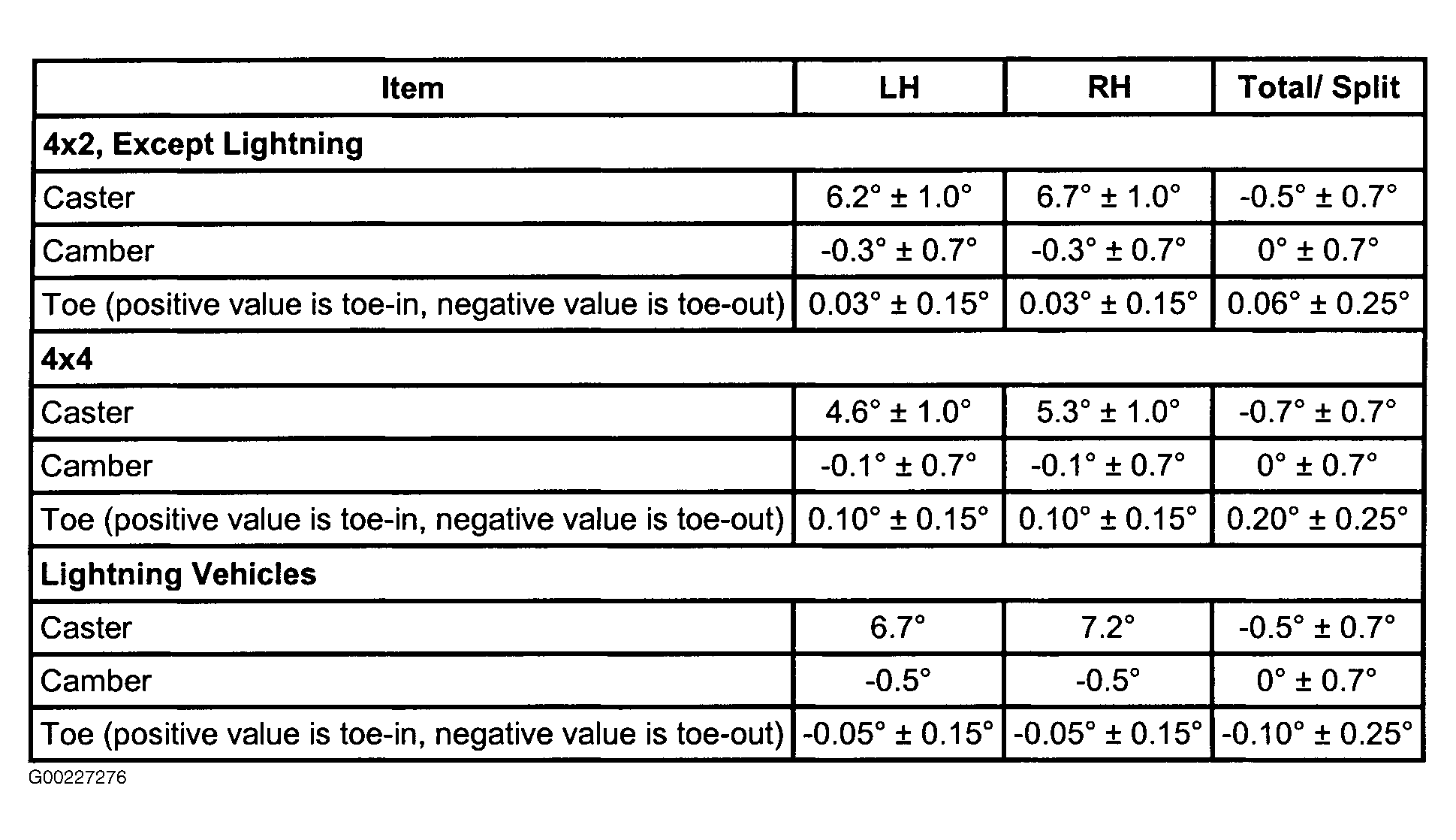

Fig 2: Wheel Alignment Specifications (F150 Pickup)

Courtesy of FORD MOTOR CO.
