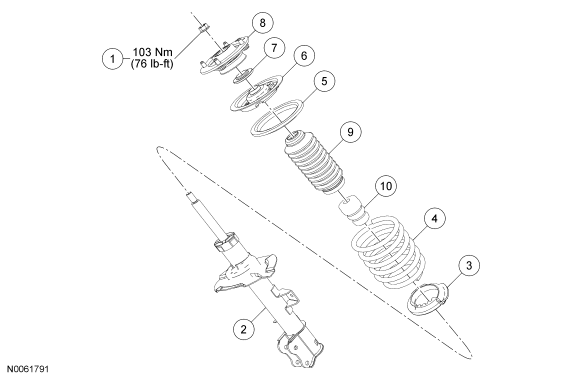

Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W706004 |
Strut piston rod-to-bushing nut |
| 2 |
18K001 LH/ 18045 RH |
Strut |
| 3 |
5A307 |
Lower coil spring insulator |
| 4 |
5310 |
Coil spring |
| 5 |
5A318 |
Upper coil spring insulator |
| 6 |
5A306 |
Bearing plate |
| 7 |
3K099 |
Bearing |
| 8 |
18A007 |
Strut upper bushing |
| 9 |
18A179 |
Dust boot |
| 10 |
18061 |
Bumper |
