Subwoofer Speaker: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

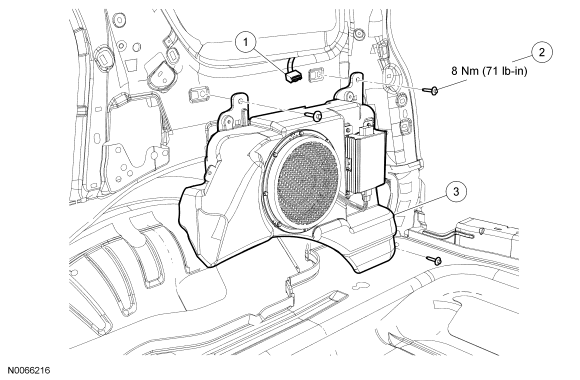

Fig 1: Subwoofer Speaker Components With Torque Specification
GF0042691Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Subwoofer amplifier electrical connector (part of 14405)
2 W503926-S Subwoofer speaker bolts (3 required)
3 19A069 Subwoofer speaker
