Removal And Installation: Spring: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

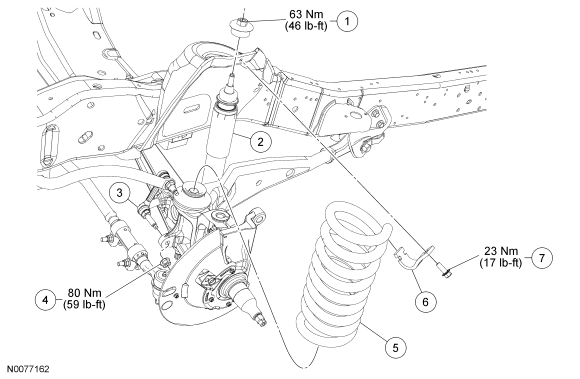

Fig 1: Exploded View Of Spring With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18A192	Shock absorber upper nut and bushing
2	18045	Shock absorber
3	5K483	Stabilizer bar link
4	W710269	Stabilizer bar link nut
5	5310	Spring
6	5A333	Spring upper bracket
7	W505263	Spring upper bracket bolt
