Instrument Panel - Exploded View: MKZ
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

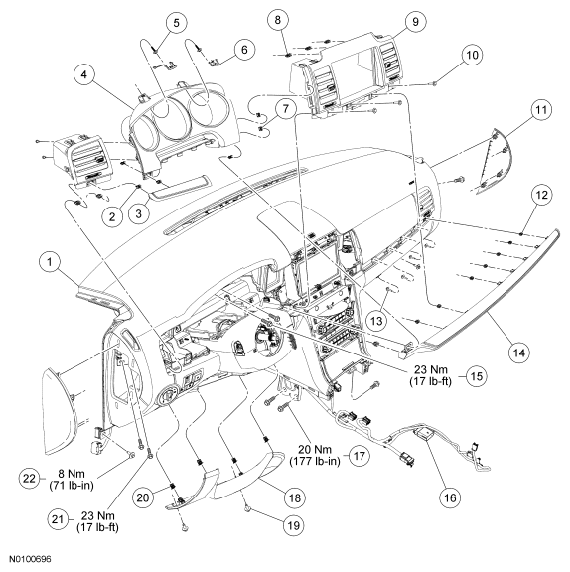

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 04320 | Instrument panel |
| 2 | - | LH instrument panel finish panel clip (part of 044A91) (2 required) |
| 3 | 044A91 | LH instrument panel finish panel |
| 4 | 044D70 | Instrument cluster finish panel |
| 5 | W707628 | Instrument cluster finish panel screw (2 required) |
| 6 | - | Instrument cluster finish panel screw cover (part of 044D70) (2 required) |
| 7 | - | Instrument cluster finish panel retaining clip (part of 044D70) (3 |
| required) | 8 | - Center instrument panel finish panel retaining clip (part of |
| 9 | 04302 | Center instrument panel finish panel |
| 10 | W707628 | Center instrument panel finish panel screw (3 required) |
| 11 | 04480 RH/04481 LH | Instrument panel side finish panel |
| 12 | - | Instrument panel finish molding retaining clip (part of 044A90) (8 required) |
| 13 | W707607 | Instrument panel finish molding screw (4 required) |
| 14 | 044A90 | Instrument panel finish molding |
| 15 | W701834 | Instrument Cluster (IC) opening bolt (2 required) |
| 16 | 14401 | Instrument panel harness connector |
| 17 | N811479 | Instrument panel center support bolt (3 required) |
| 18 | 011201 | Steering column opening trim panel |
| 19 | N808453 | Steering column opening trim panel screw (2 required) |
| 20 | - | Steering column opening trim panel retaining clip (4 required) |
| 21 | W701834 | Instrument panel side bolt (3 required) |
| 22 | W708268 | Instrument panel lower bolt (2 required) |
