Powertrain Control Module (PCM): Notes
WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

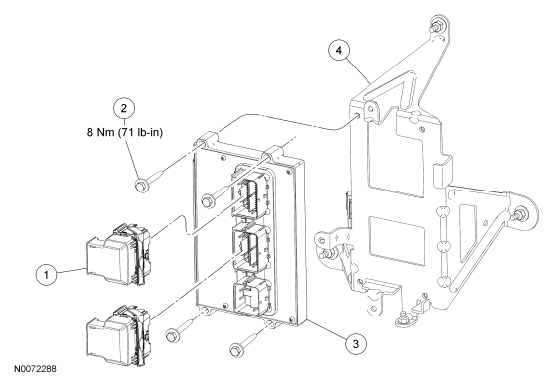

Fig 1: Identifying Powertrain Control Module (PCM) Replacement Components With Torque Specifications
PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | PCM electrical connector (part of 12B637) (2 required) |
| 2 | W505428 | PCM bolt (4 required) |
| 3 | 12A650 | PCM |
| 4 | 12A659 | PCM bracket |
