WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

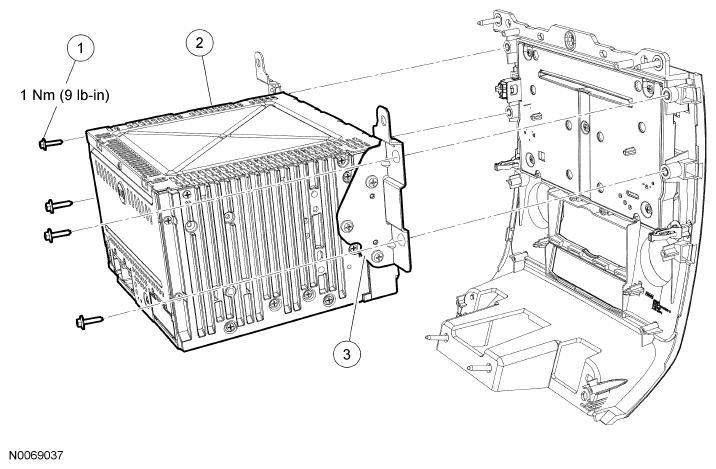

Fig 1: ACM With Brackets And Screws With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W790110-S	Audio Control Module (ACM) screws (4 required)
2	18C869	ACM
3	19A028	ACM brackets (2 required)
