Brake Shift Interlock Connector - C2008
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

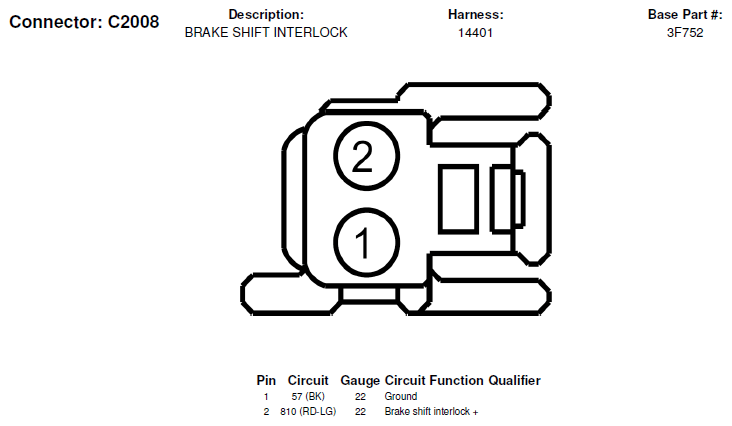

Fig 1: Brake Shift Interlock Connector End View (C2008)
