Steering Column: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

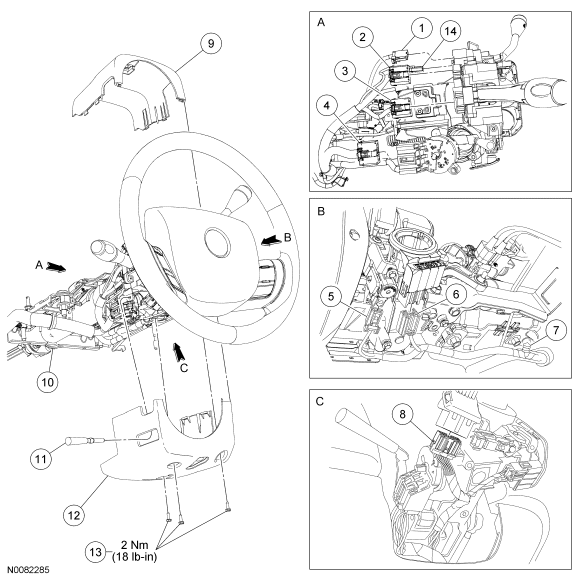

| Item |
Part Number |
Description |
| 1 |
- |
Multifunction switch electrical connector (part of 14401) |
| 2 |
- |
Multifunction switch electrical connector (part of 14401) |
| 3 |
- |
Multifunction switch electrical connector (part of 14401) |
| 4 |
- |
Ignition switch electrical connector (part of 14401) |
| 5 |
- |
Brake shift interlock solenoid electrical connector (part of 14401) |
| 6 |
- |
Passive anti-theft system (PATS) electrical connector (part of 14401) |
| 7 |
- |
Wiring harness retainer (part of 14401) |
| 8 |
- |
Clockspring electrical connector (part of 14401) |
| 9 |
3530 |
Upper steering column shroud |
| 10 |
3C529 |
Steering column |
| 11 |
3F609 |
Steering column tilt lever shank |
| 12 |
3530 |
Lower steering column shroud |
| 13 |
55929 |
Lower steering column shroud screws (3 required) |
| 14 |
- |
Overdrive cancel switch electrical connector (part of 14401) |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |

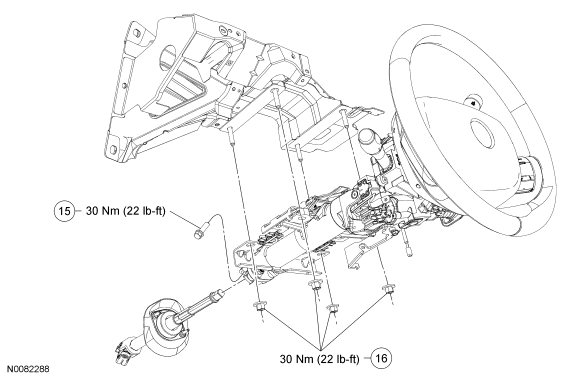

| 15 |
N803942 |
Upper steering column shaft-to-steering column bolt |
| 16 |
N806423 |
Steering column nuts (4 required) |
