Seat Position Sensor: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

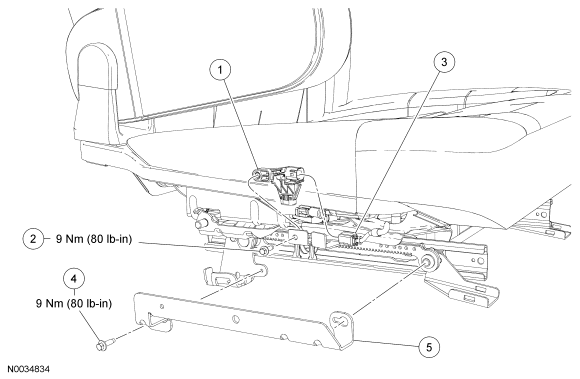

| Item |
Part Number |
Description |
| 1 |
14B416 |
Seat position sensor |
| 2 |
W611624 |
Seat position sensor bolt |
| 3 |
- |
Seat position sensor electrical connector (part of 14A669) |
| 4 |
W611624 |
Bracket bolt |
| 5 |
14B417 |
Bracket |
