Anti-Lock Brake System Module Connector - C135

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

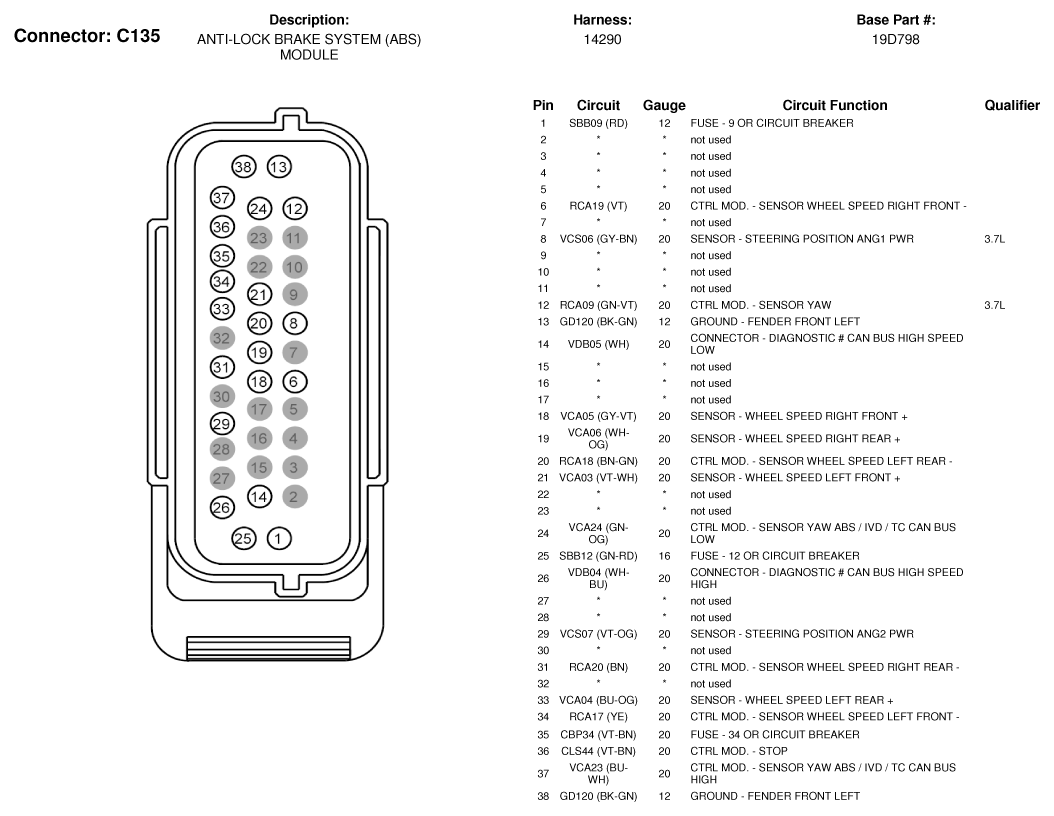

Fig 1: Anti-Lock Brake System Module Connector End View (C135)
G07335986Courtesy of FORD MOTOR CO.
