Front Controls Interface Module Connector - C2403

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

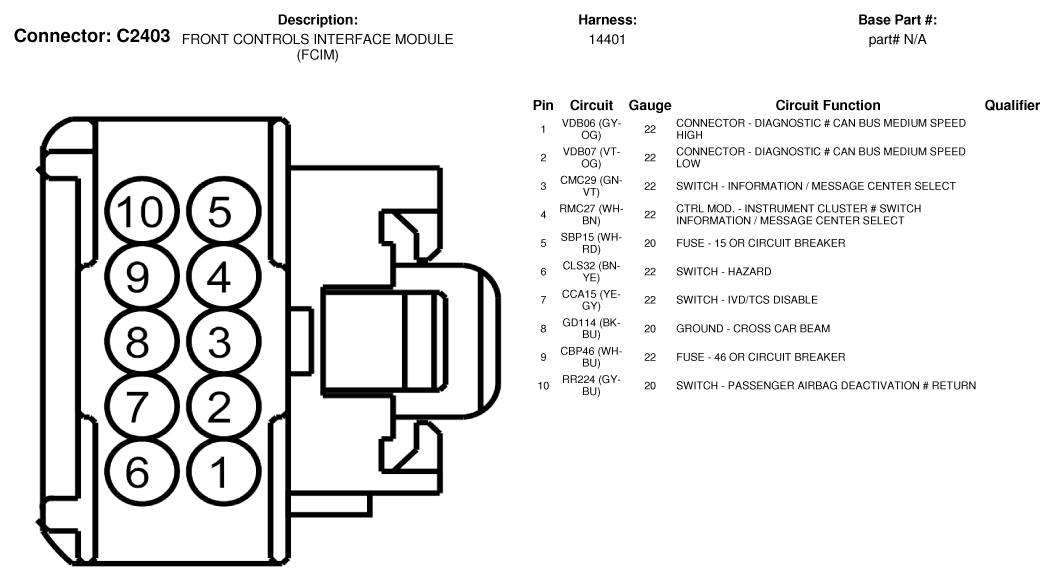

Fig 1: Front Controls Interface Module Connector End View (C2403)
G07336275Courtesy of FORD MOTOR CO.
