Fuel Pump Control Module Connector - C3239

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

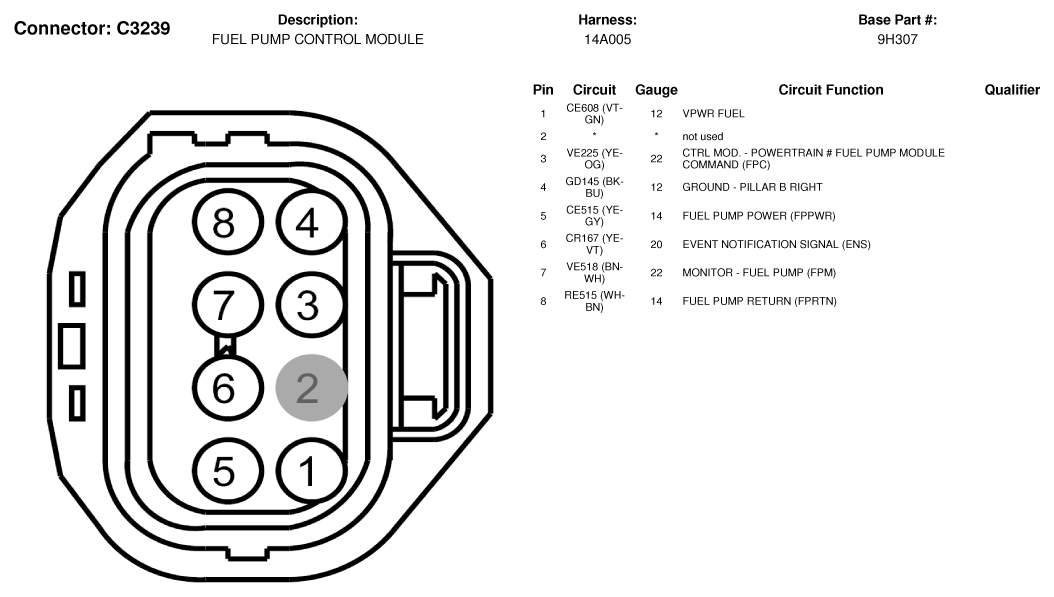

Fig 1: Fuel Pump Control Module Connector End View (C3239)
G07336335Courtesy of FORD MOTOR CO.
