WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

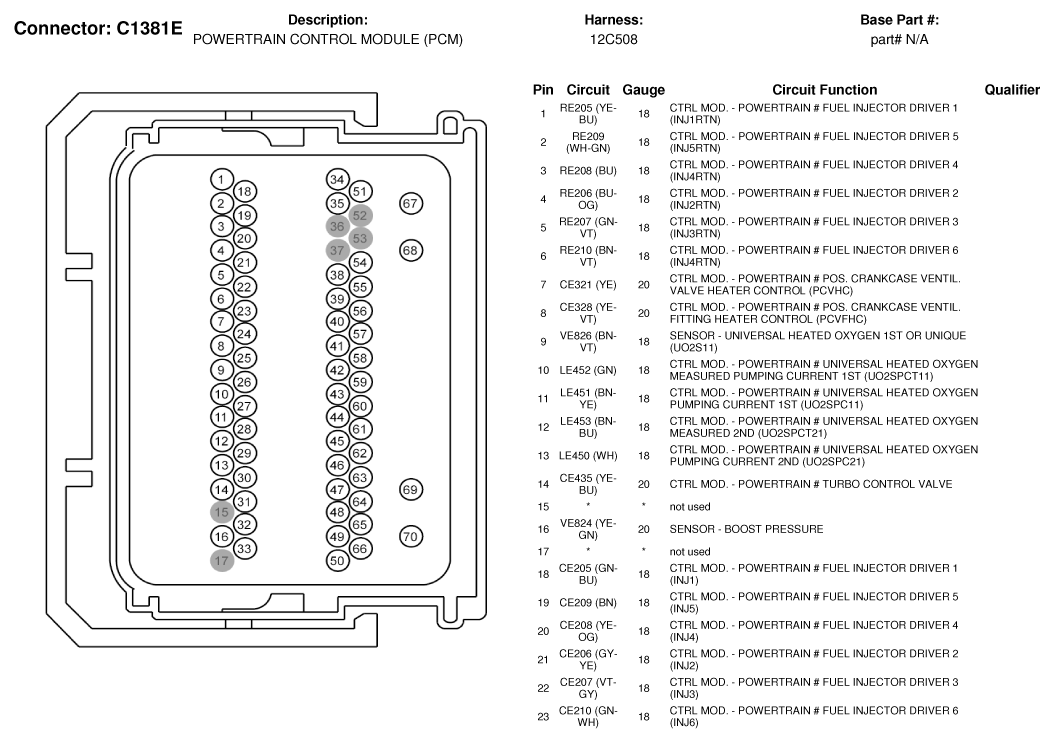

Fig 1: Powertrain Control Module Connector End View (C1381E) (1 Of 3)
Courtesy of FORD MOTOR CO.

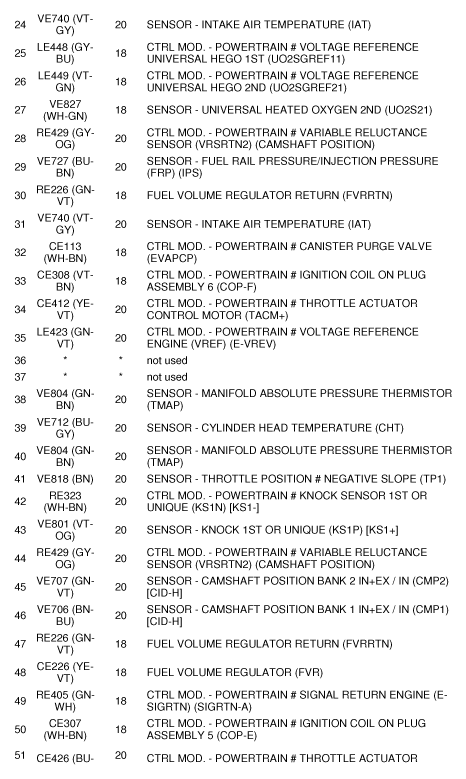

Fig 1: Powertrain Control Module Connector End View (C1381E) (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 1: Powertrain Control Module Connector End View (C1381E) (3 Of 3)
