Input Shaft: Material
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| SAE 75W-90 API GL-4 Gear Oil XT-4-QGL |
WSS-M2C203-A1 |

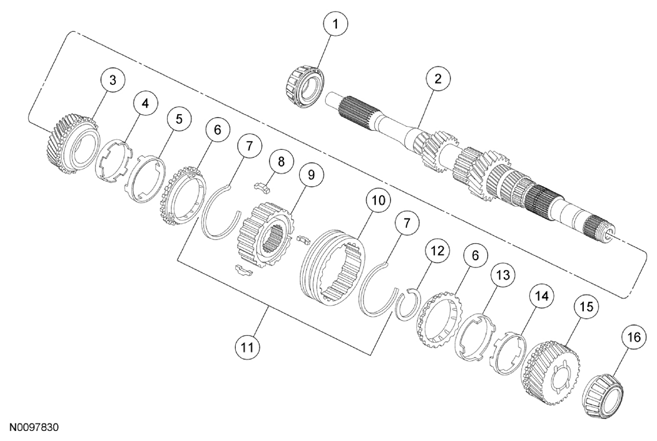

| Item | Part Number | Description |
|---|---|---|
| 1 | 7025 | Bearing |
| 2 | 7017 | Input shaft |
| 3 | 7101 | 3rd gear |
| 4 | - | Double cone (part of 7Z018) |
| 5 | - | Inner cone (part of 7Z018) |
| 6 | 7Z018 | Synchronizer blocking ring (part of blocking ring set) |
| 7 | 7109 | Synchronizer blocking springs (part of 7124) |
| 8 | 7A044 | Synchronizer hub insert (part of 7124) |
| 9 | 7105 | Synchronizer hub (part of 7124) |
| 10 | 7106 | Synchronizer sleeve (part of 7124) |
| 11 | 7124 | Synchronizer hub assembly |
| 12 | 7064 | Snap ring |
| 13 | - | Double cone (part of 7Z018) |
| 14 | - | Inner cone (part of 7Z018) |
| 15 | 7110 | 4th gear |
| 16 | 7025 | Bearing |
