Steering System Components

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

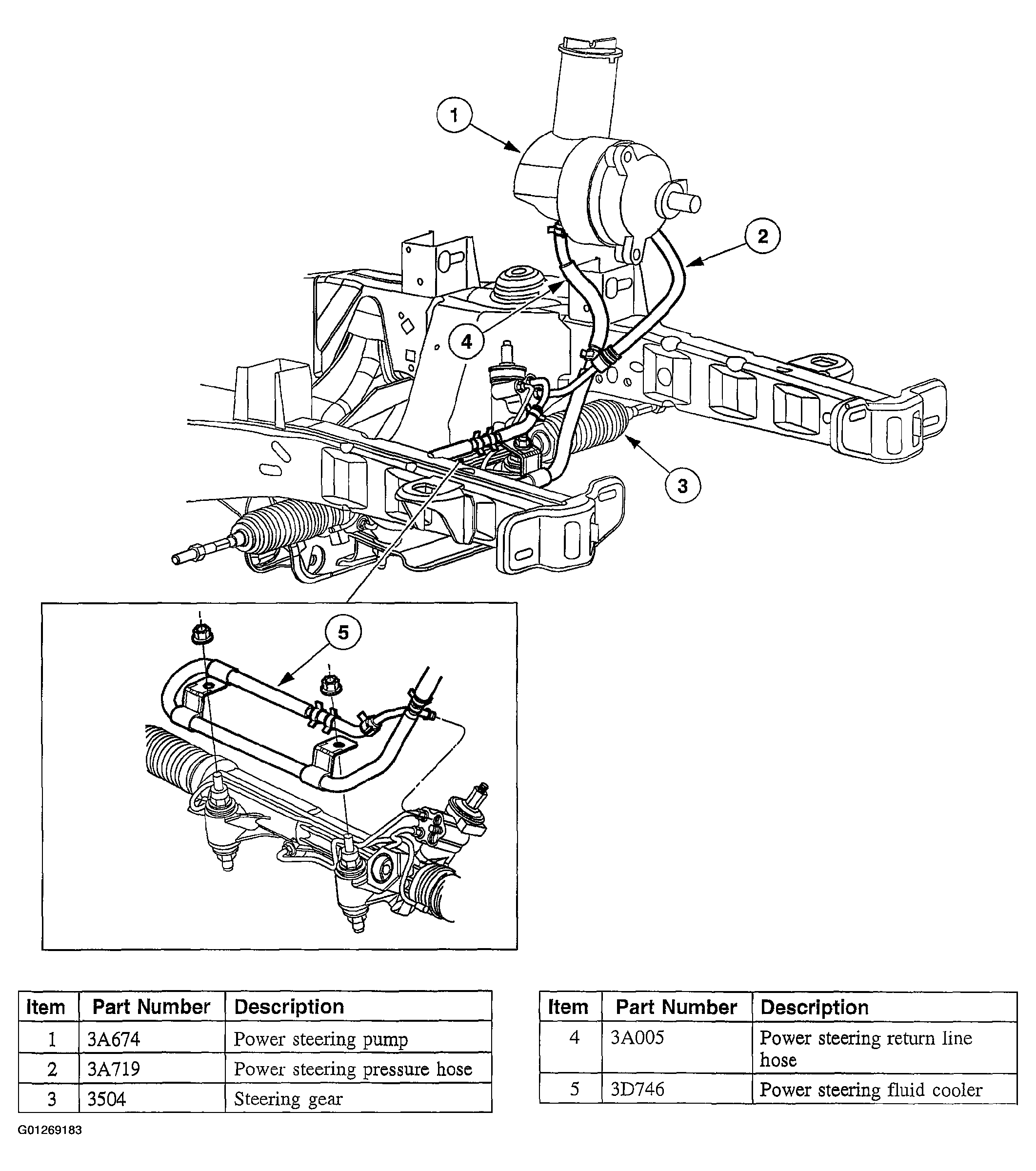

Fig 1: Identifying Steering System Components

Courtesy of FORD MOTOR CO.

For information on the power steering oil reservoir (3A697), refer to POWER STEERING .

For information on the steering wheel and column assembly, refer to STEERING COLUMN .

For information on the power steering fluid lines, refer to POWER STEERING .

For information on the 4x2 front wheel spindles, refer to FRONT - 2WD .

For information on the power steering fluid cooler (3D746), refer to POWER STEERING .

For information on the power steering pump (3A674), refer to POWER STEERING .

For information on the steering gear (3504), refer to POWER STEERING .

For information on the tie rod end (3A130), refer to POWER STEERING .

For information on the 4x4 wheel hubs, refer to FRONT - 4WD TORSION BAR .
