Removal And Installation: Hose: Installation

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. When connecting a fitting with a seal ring, the ring must be replaced.
    • The Seal Replacer is used to install the return line connector seal and the pressure line connector seal.

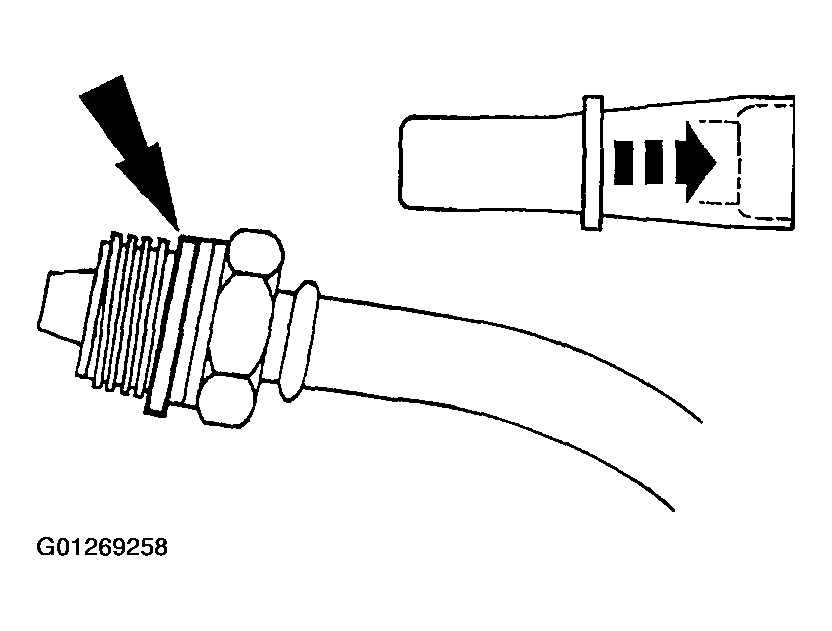

      Fig 1: Installing Return & Pressure Line Connector Seal
      G01269258Courtesy of FORD MOTOR CO.
  2. Fill, purge and leak check the system. For additional information, refer to GENERAL INFORMATION .
