Brake Pedal: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column. For additional information, refer to STEERING SYSTEM .
Remove the components in the order indicated in Fig 1.

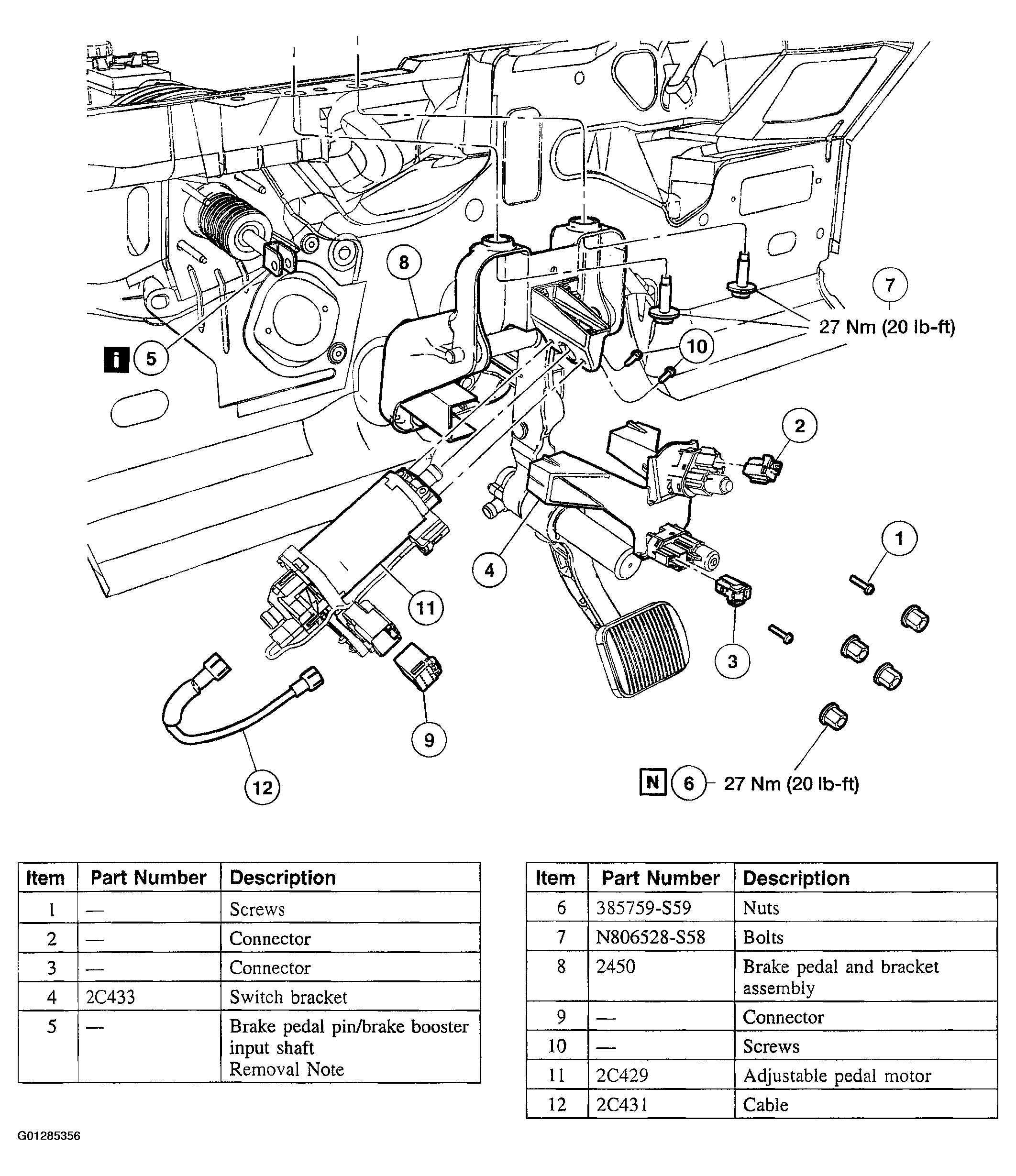

Fig 1: Identifying Removing Sequence Of Brake Pedal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
