Input Shaft: Assembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Whenever a bearing has been removed, a new one must be installed.

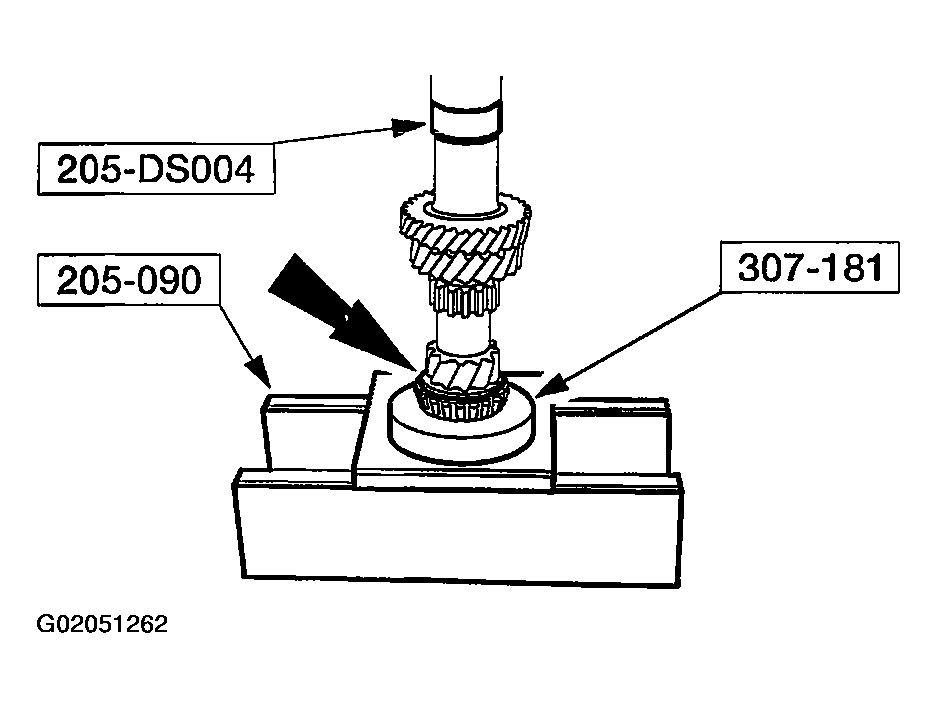

Fig 1: Pressing Third Gear Bearing

Courtesy of FORD MOTOR CO.

Using the special tools and a press, press on the bearing (third gear side).
Install the third gear.

NOTE: When installing the synchronizer blocking ring, align the synchronizer blocking ring groove and synchronizer hub inserts.

NOTE: Make sure to have the ridge facing the third gear when installing the synchronizer hub assembly.

NOTE: Make sure that the four grooves in the synchronizer hub are facing the third gear.

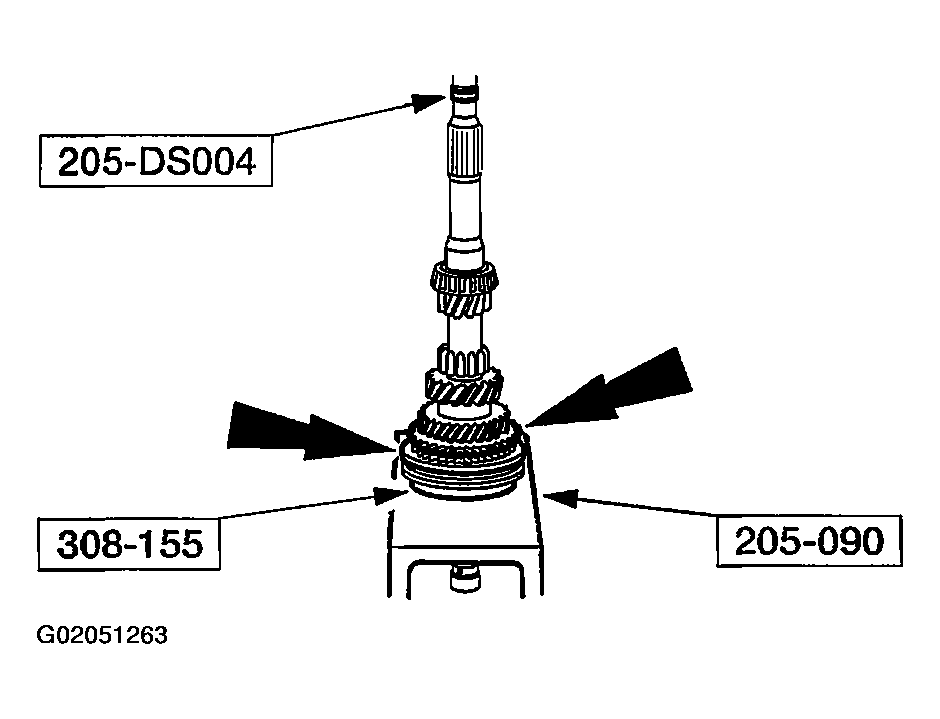

Fig 2: Pressing On Synchronizer Blocking Ring And Synchronizer Hub Assembly

Courtesy of FORD MOTOR CO.

Using the special tools and a press, press on the synchronizer blocking ring and synchronizer hub assembly.
Install the snap ring.

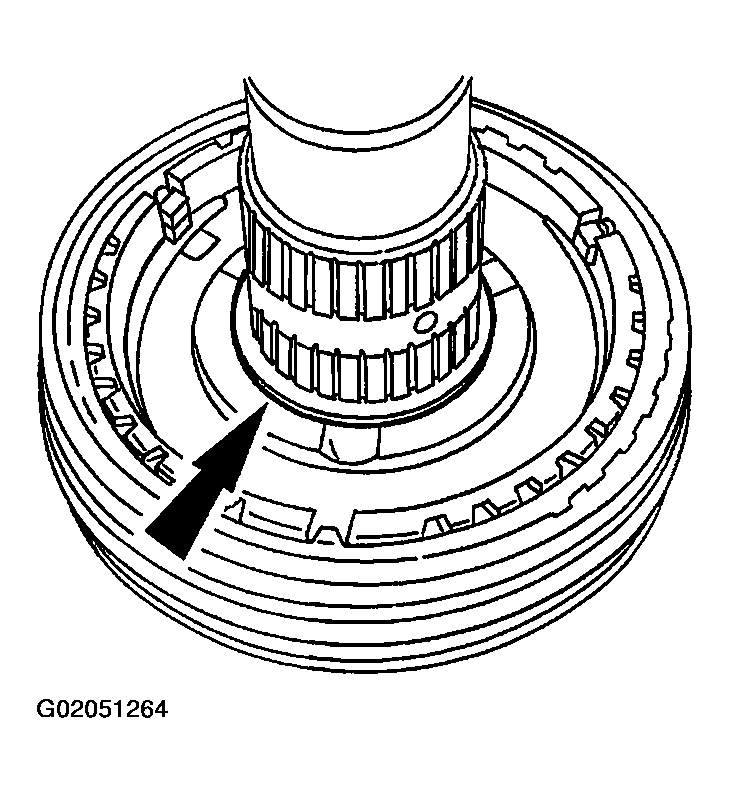

Fig 3: Installing Snap Ring
Courtesy of FORD MOTOR CO.

NOTE: When installing the synchronizer blocking ring, align the synchronizer blocking ring groove and synchronizer hub inserts.

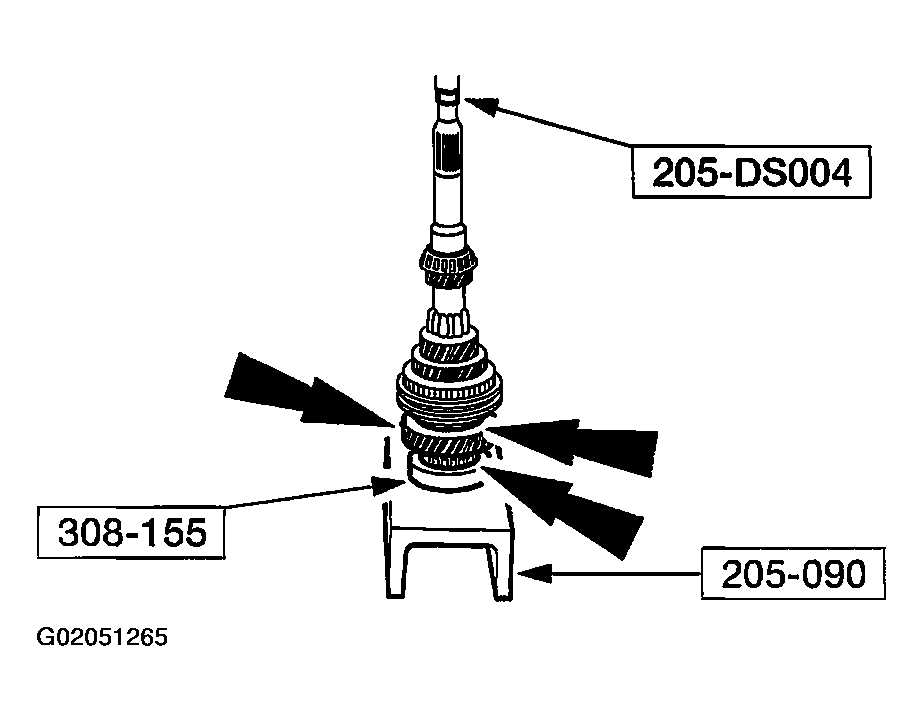

Fig 4: Pressing Synchronizer Blocking Ring

Courtesy of FORD MOTOR CO.

Using the special tools and a press, press on the synchronizer blocking ring, fourth gear, and the bearing.

NOTE: If not within specifications, disassemble and reassemble the input shaft assembly.

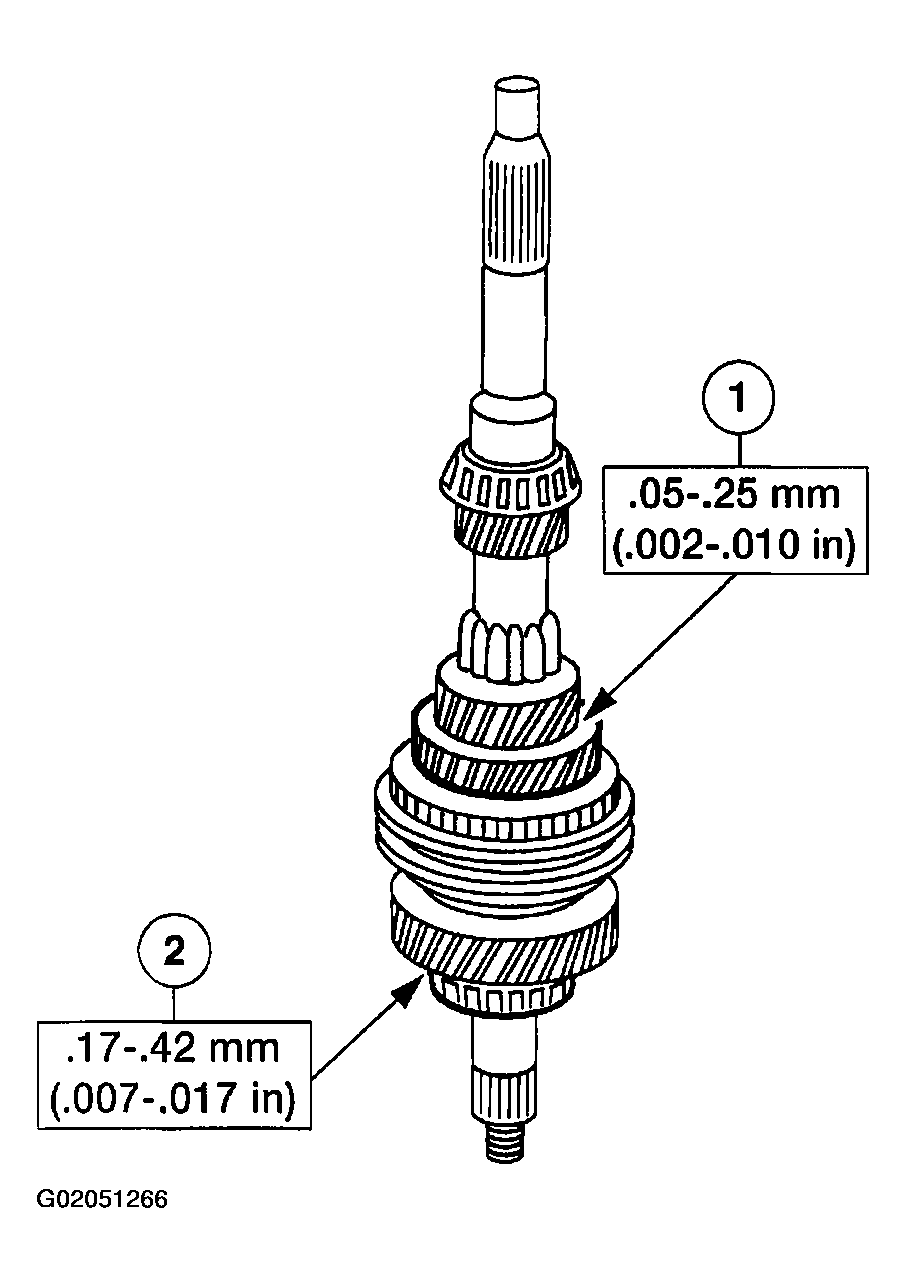

Fig 5: Measuring Input Shaft Clearances

Courtesy of FORD MOTOR CO.

Measure the input shaft clearances.
1. Measure the clearance between the third and second gears.
2. Measure the clearance between the fourth gear and the bearing cone.
