Anti-Lock Brake System (Abs) Module: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
The ABS module mounts to the HCU on a bracket on L/H inner fender well in engine compartment.

Remove the hydraulic control unit (HCU); refer to HYDRAULIC CONTROL UNIT - (HCU) .
Detach the bracket from the HCU.
1. Remove the bolts.
2. Detach the bracket from the HCU.

  Fig 1: Removing Bracket Bolts From HCU
  Courtesy of FORD MOTOR CO.
Remove the anti-lock brake control module.
1. Remove the screws.
2. Remove the anti-lock brake control module.

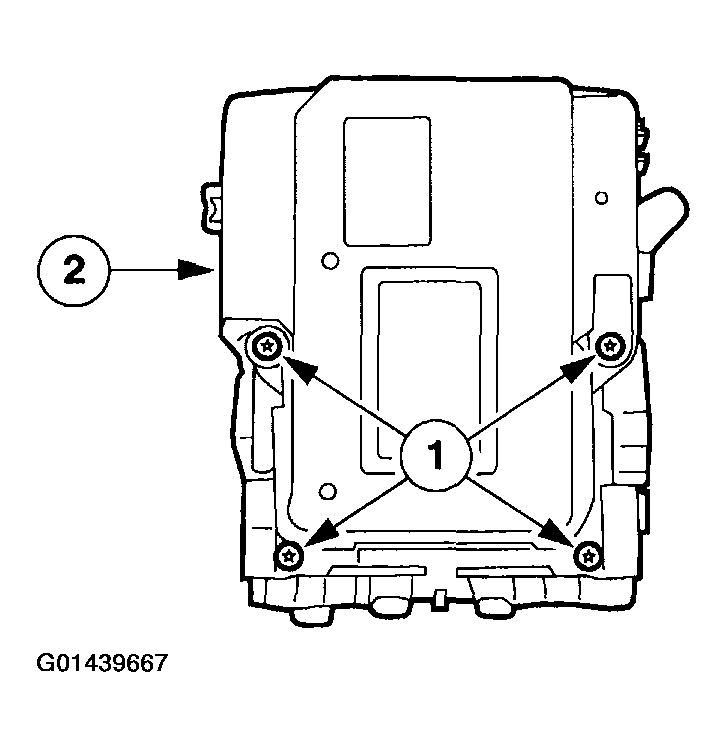

  Fig 2: Removing Anti-Lock Brake Control Module Screws
  Courtesy of FORD MOTOR CO.
