Diagnostic Flow Chart

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

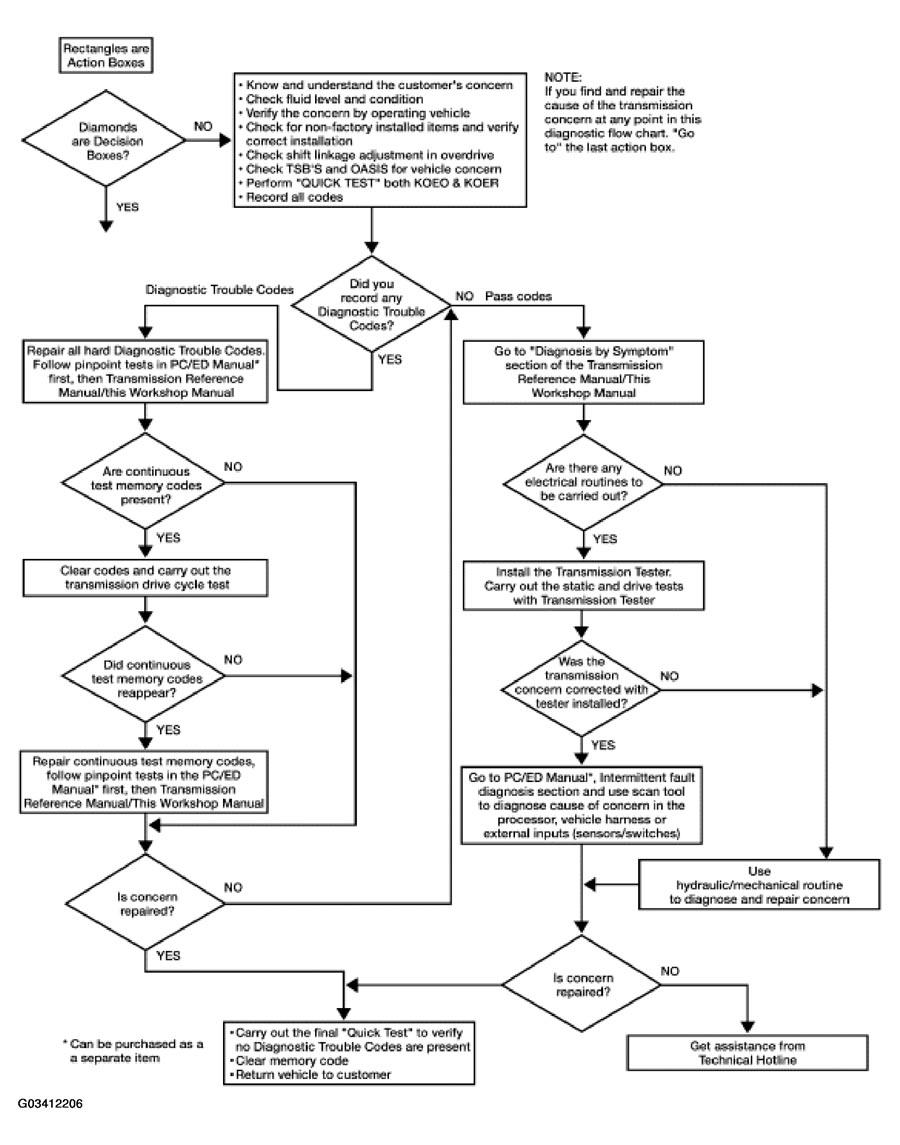

Fig 1: Diagnostic Flow Chart
G03412206Courtesy of FORD MOTOR CO.
