Reduction Gear: Disassembly

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not remove the reduction gear bearing unless it must be replaced.

NOTE: The bearing may be damaged when removed.

Inspect the reduction gear bearing. If the bearing shows signs of excessive wear or damage, remove the bearing.
Remove the reduction gear bearing outer cage.

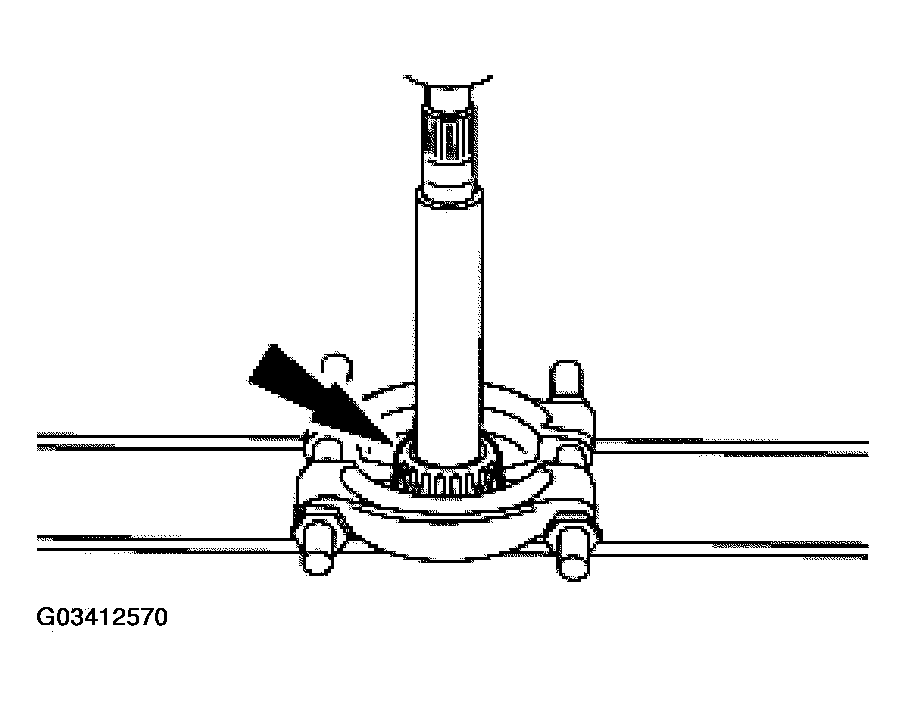

Fig 1: Removing Reduction Gear Bearing Outer Cage
Courtesy of FORD MOTOR CO.
