Piston - Inspection

WARNING: This page is about a different car, the 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

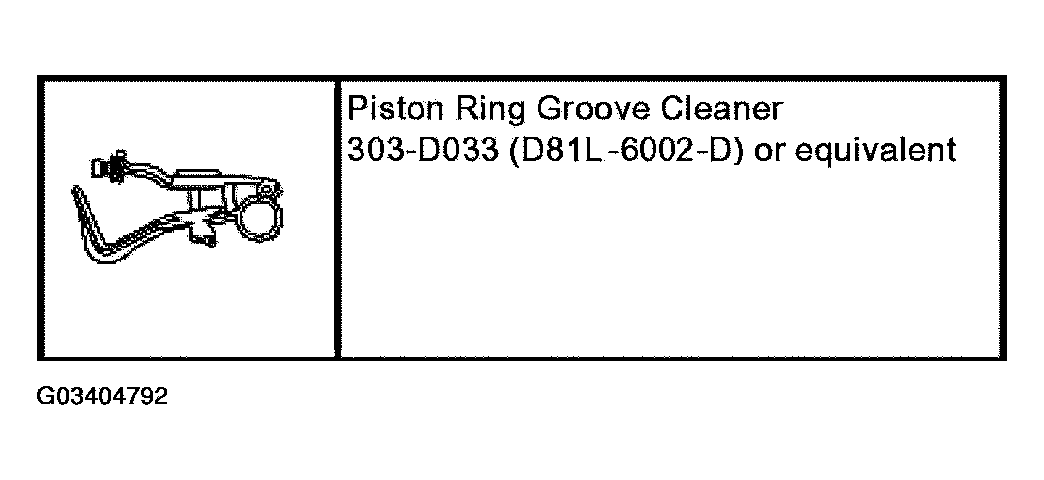

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

CAUTION: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur.

Clean and inspect the (1) ring lands, (2) skirts, (3) pin bosses, and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted connecting rod.

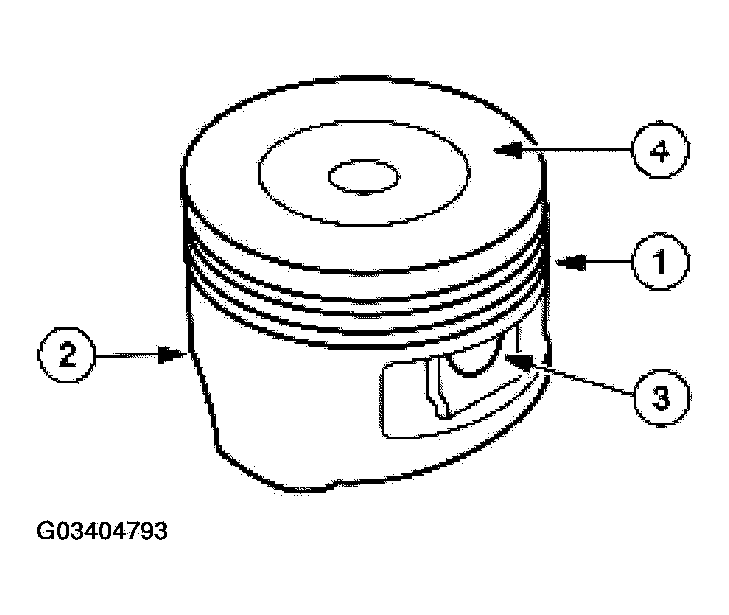

Fig 2: Cleaning & Inspecting Ring Lands, Skirts, Pin Bosses, And Tops Of Pistons
Courtesy of FORD MOTOR CO.
Use the Piston Ring Groove Cleaner to clean the piston ring grooves.
- Make sure the oil ring holes are clean.

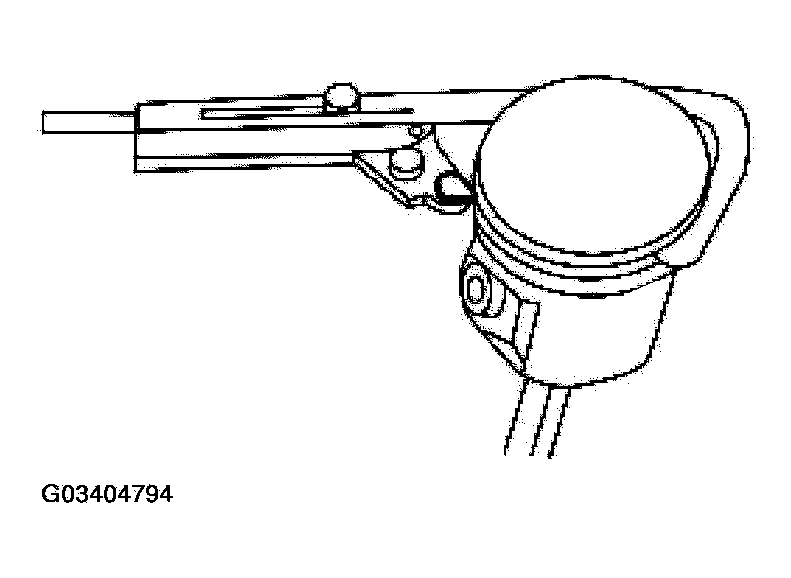

  Fig 3: Cleaning Piston Ring Grooves Using Piston Ring Groove Cleaner
  Courtesy of FORD MOTOR CO.
