Valve - Guide Reaming

WARNING: This page is about a different car, the 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a hand-reaming kit to ream the valve guide.

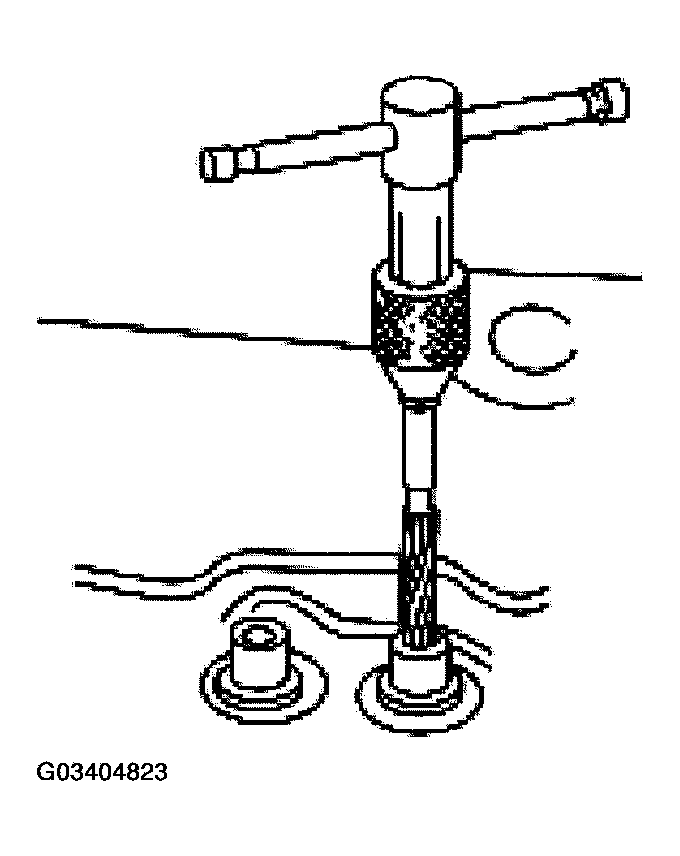

    Fig 1: Reaming Valve Guide Using Hand-Reaming Kit
    G03404823Courtesy of FORD MOTOR CO.
  2. Reface the valve seat.
  3. Clean the sharp edges left by reaming.
