Anti-Lock Brake System (Abs) Module: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

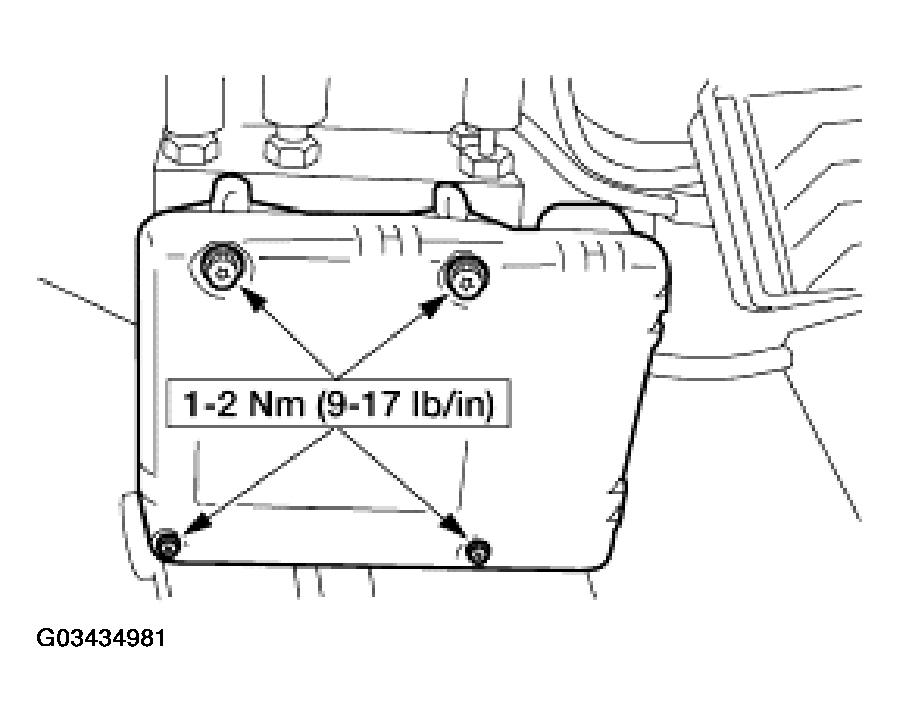

Fig 1: Installing Anti-Lock Brake Control Module

Courtesy of FORD MOTOR CO.

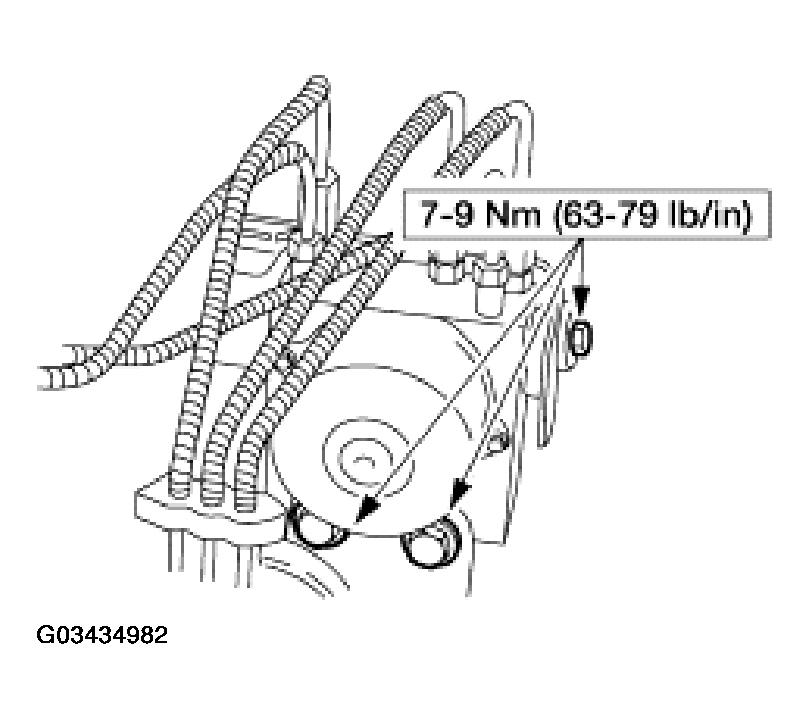

Fig 2: Installing Hydraulic Control Unit Bolts

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
