Anti-Lock Brake System (Abs) Module: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the hydraulic control unit bolts.

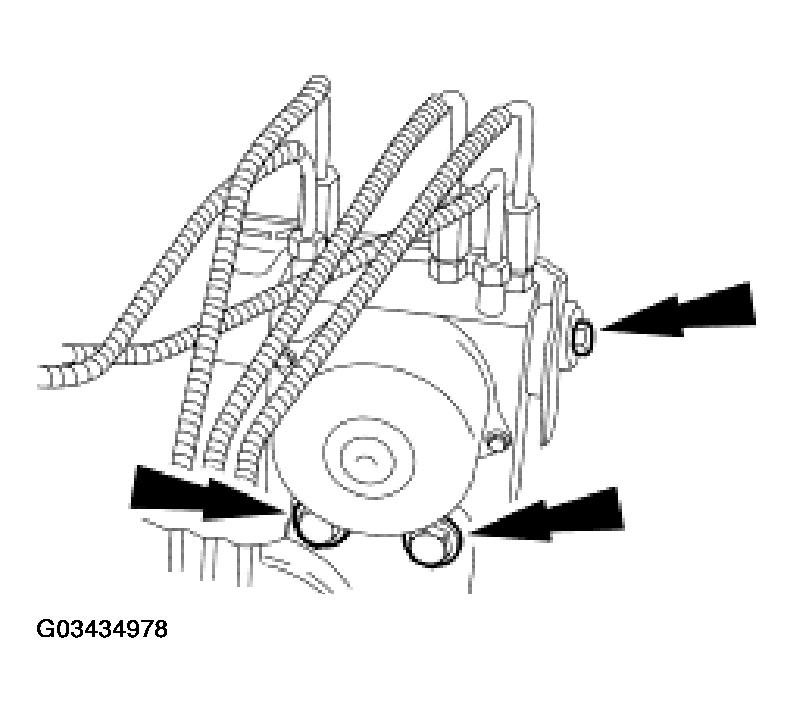

Fig 1: Removing Hydraulic Control Unit Bolts
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

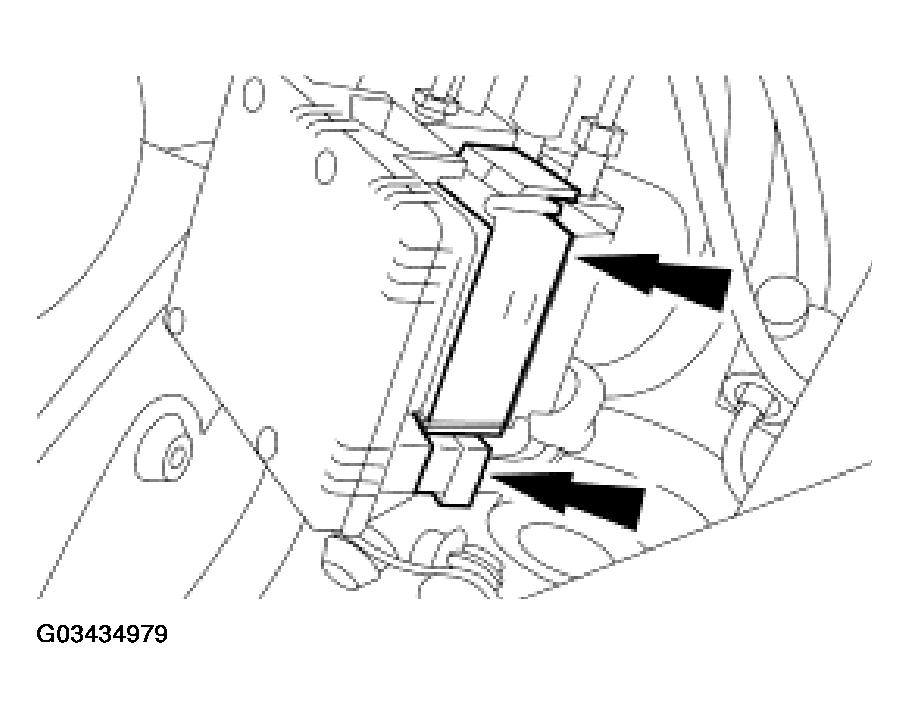

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake control module.
1. Remove the bolts.
2. Remove the anti-lock brake control module.

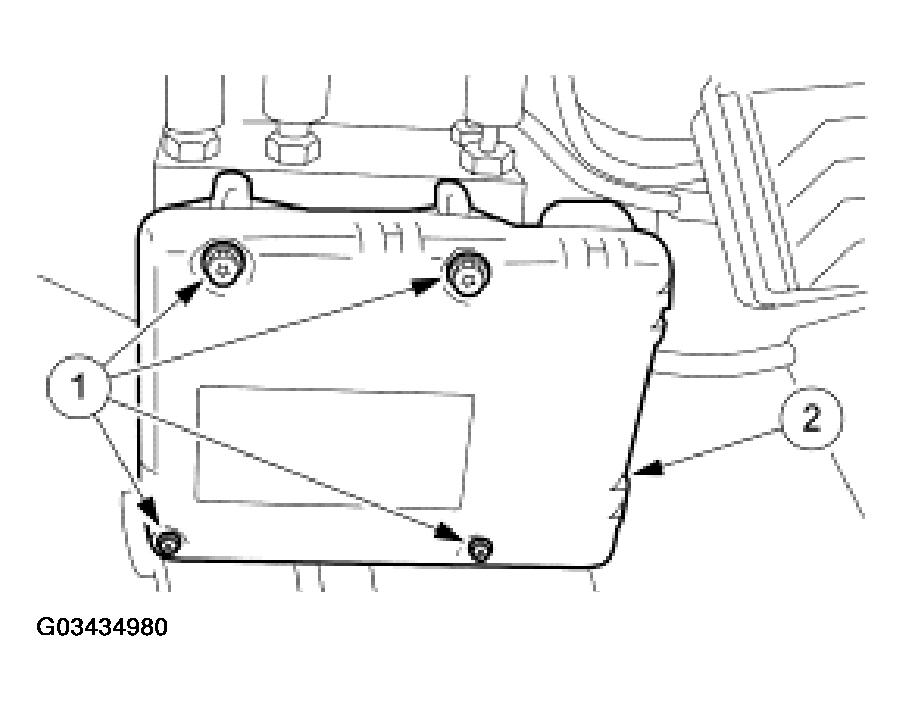

Fig 3: Removing Anti-Lock Brake Control Module
Courtesy of FORD MOTOR CO.
