Pinpoint Test D: The Doors Do Not Lock/Unlock Using The Remote Transmitter
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

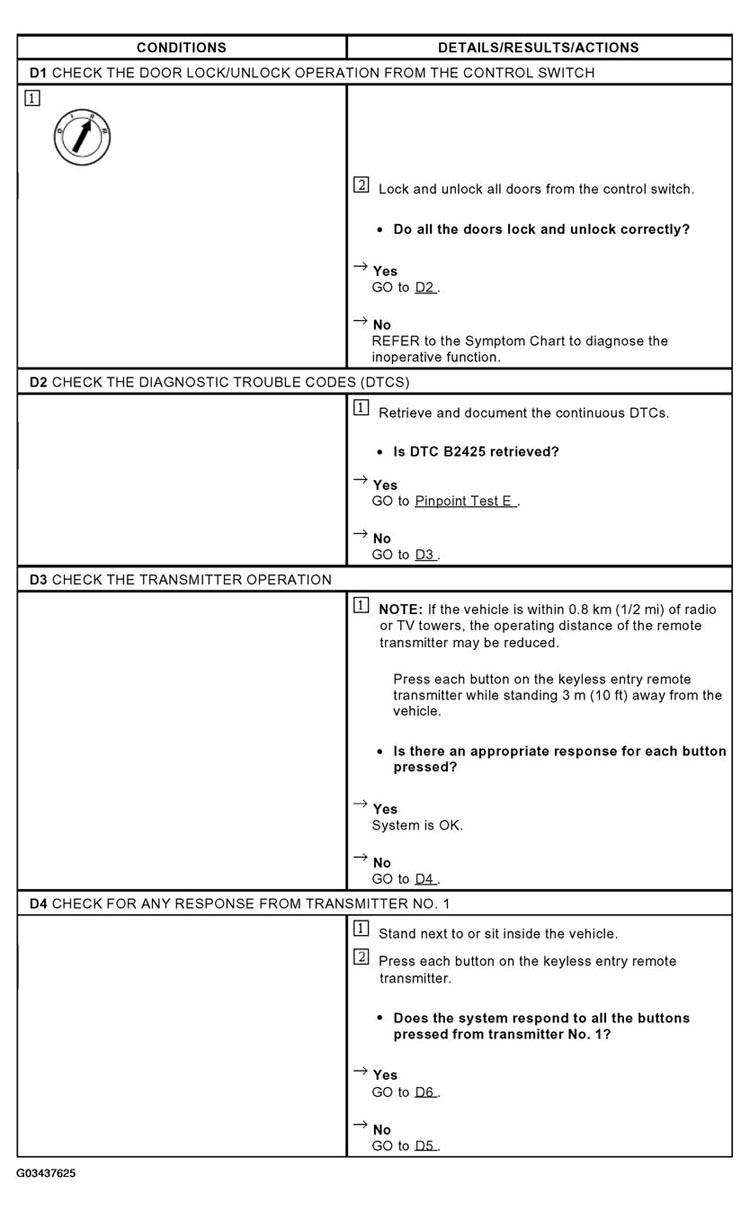

Fig 1: Pinpoint Test D: Doors Do Not Lock/Unlock Using The Remote Transmitter (D1-D4)
Courtesy of FORD MOTOR CO.

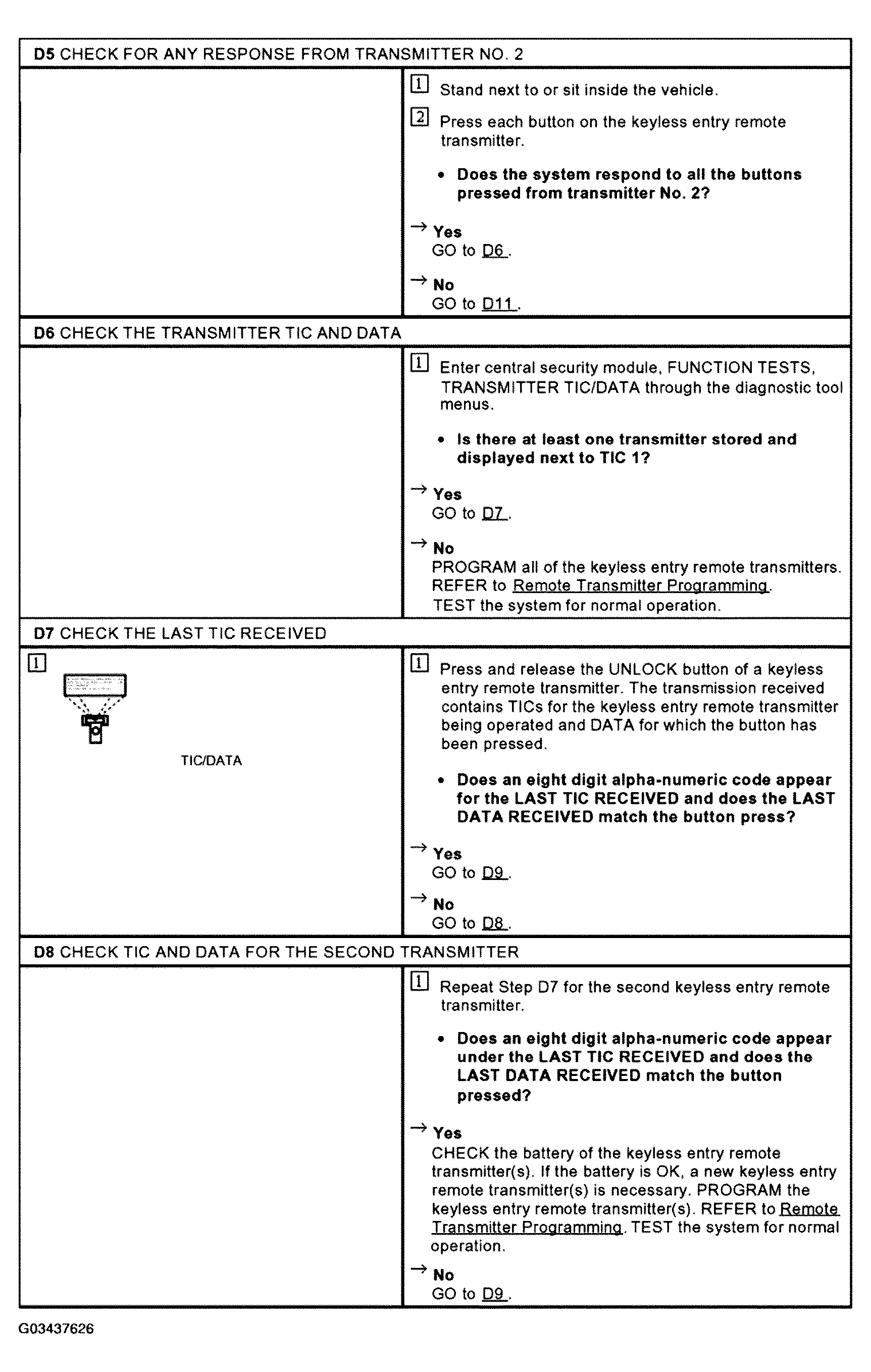

Fig 2: Pinpoint Test D: Doors Do Not Lock/Unlock Using The Remote Transmitter (D5-D8)
Courtesy of FORD MOTOR CO.

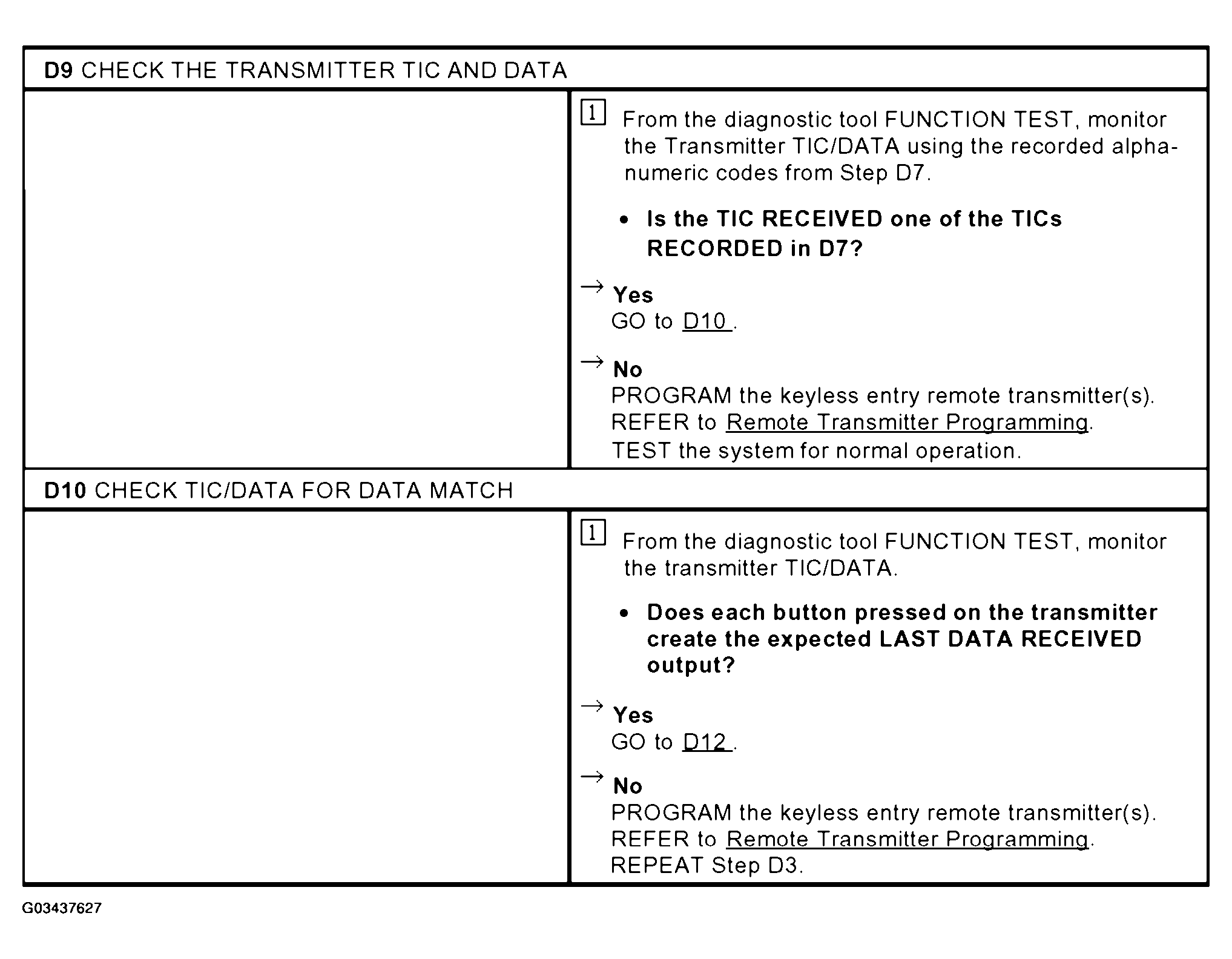

Fig 3: Pinpoint Test D: Doors Do Not Lock/Unlock Using The Remote Transmitter (D9-D10)
Courtesy of FORD MOTOR CO.

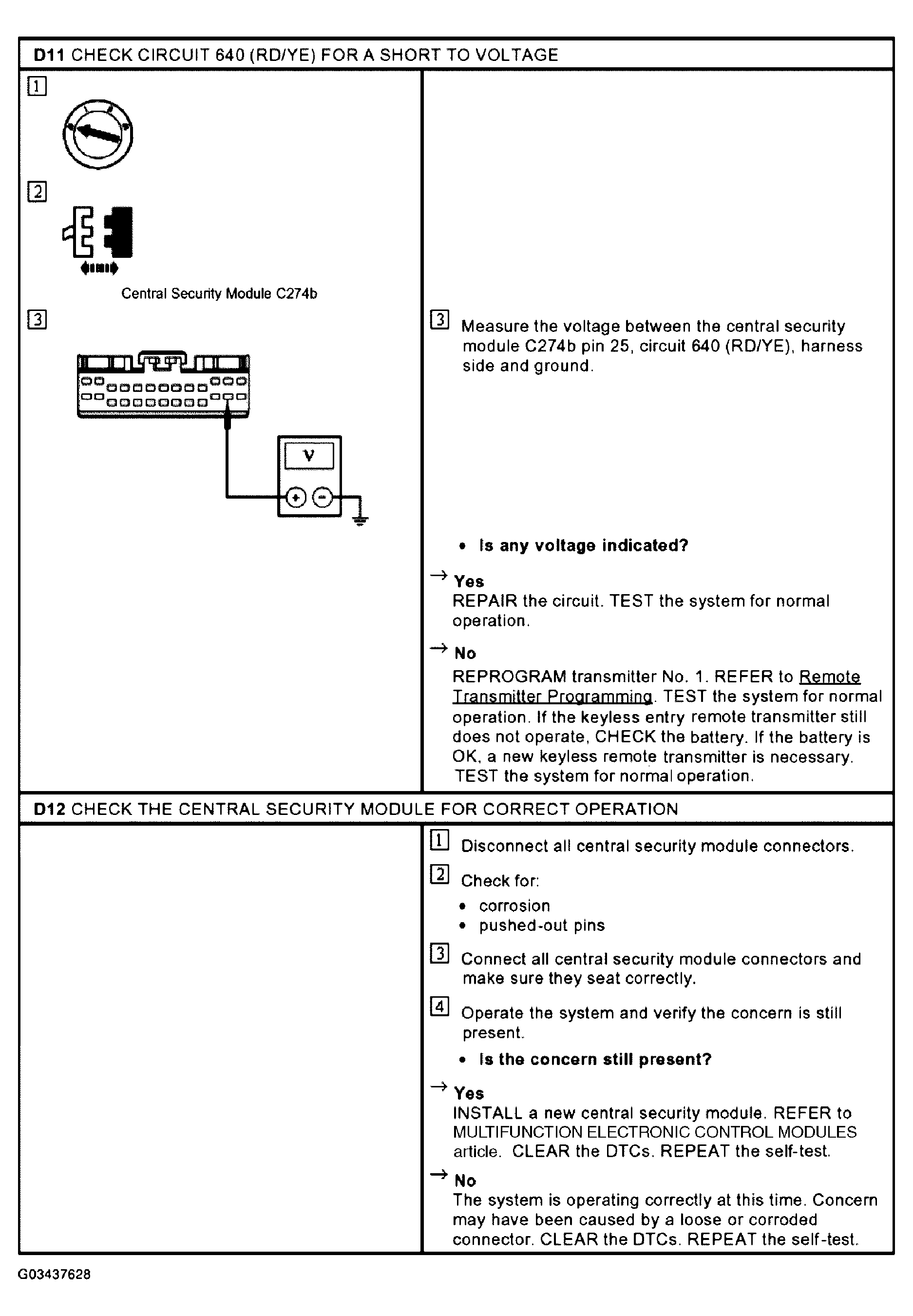

Fig 4: Pinpoint Test D: Doors Do Not Lock/Unlock Using The Remote Transmitter (D11-D12)
