Jacking Points

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

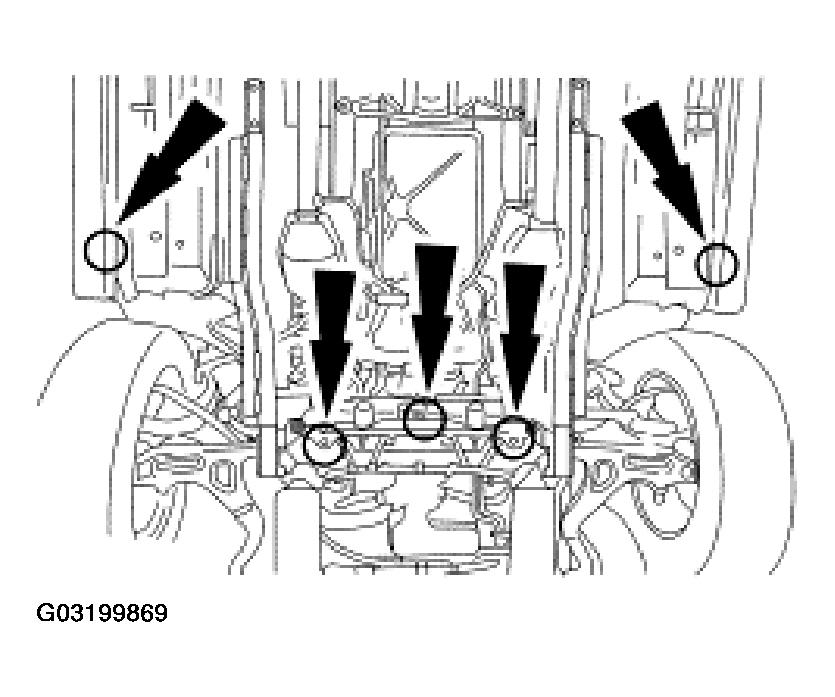

Fig 1: Locating Jacking Points

Courtesy of FORD MOTOR CO.

To lift the front or either side of the front end, position the floor jack or the hoist under the front frame lift points.

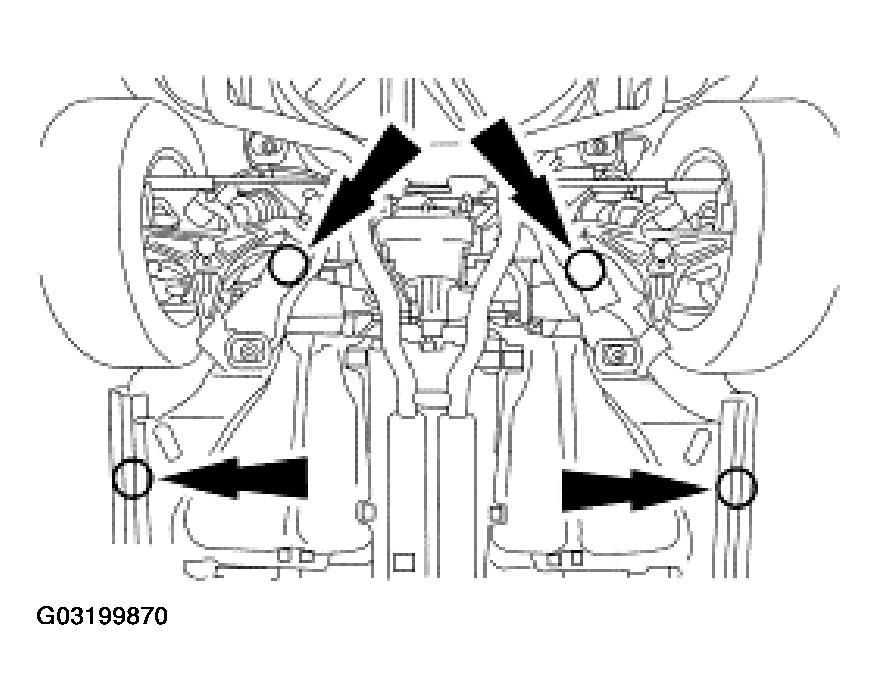

Fig 2: Locating Front Frame Lift Points

Courtesy of FORD MOTOR CO.

To lift the rear or either side of the rear end, position the floor jack or the hoist under the rear lift points.
