Window Control Switch

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the components in the order listed in the following illustration and table.

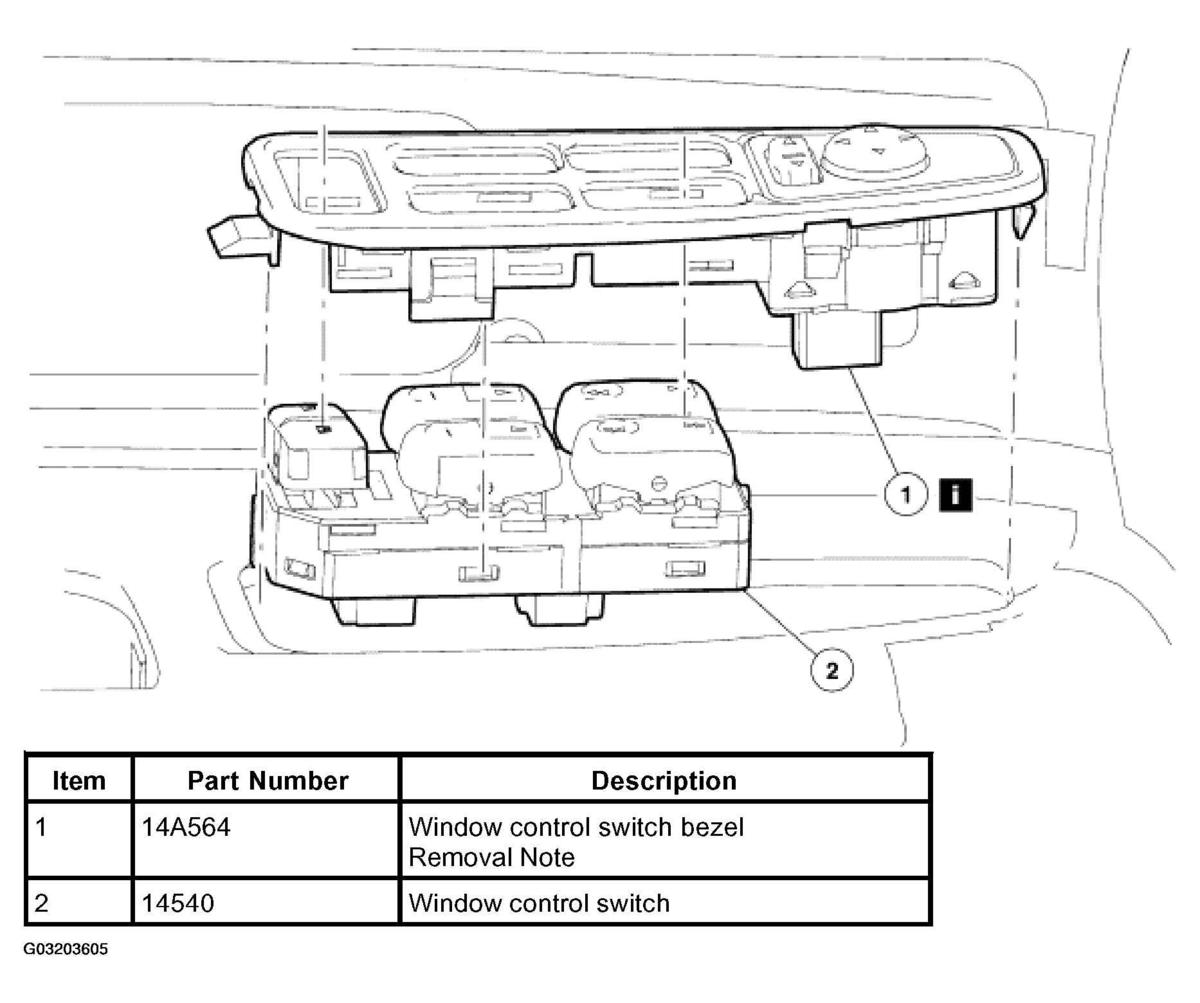

Fig 1: Removing Window Control Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Window Control Switch Bezel Removal Note

Carefully lift out the master window control switch and bezel from the front of the door panel to avoid breaking the tab.
Disconnect the electrical connector.

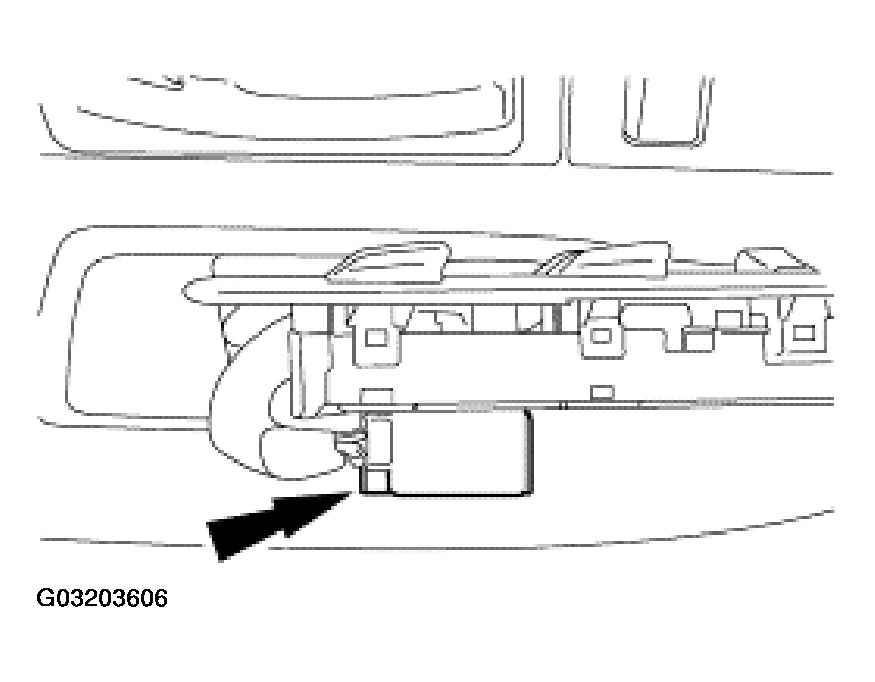

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
