Toe Adjustment

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine (6007) and center the steering wheel (3600).

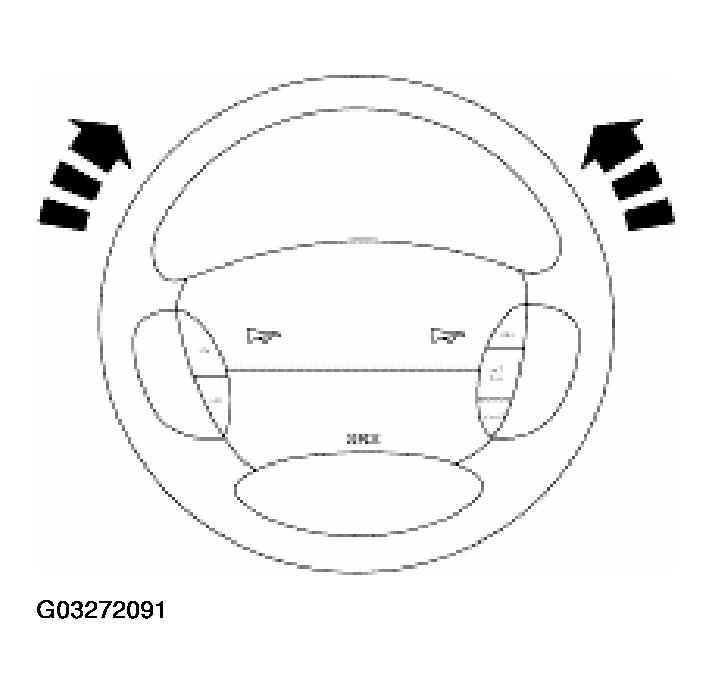

Fig 1: Center Steering Wheel (3600)
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the "straight forward" position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings; follow the manufacturer's instructions.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod (3280) is rotated.

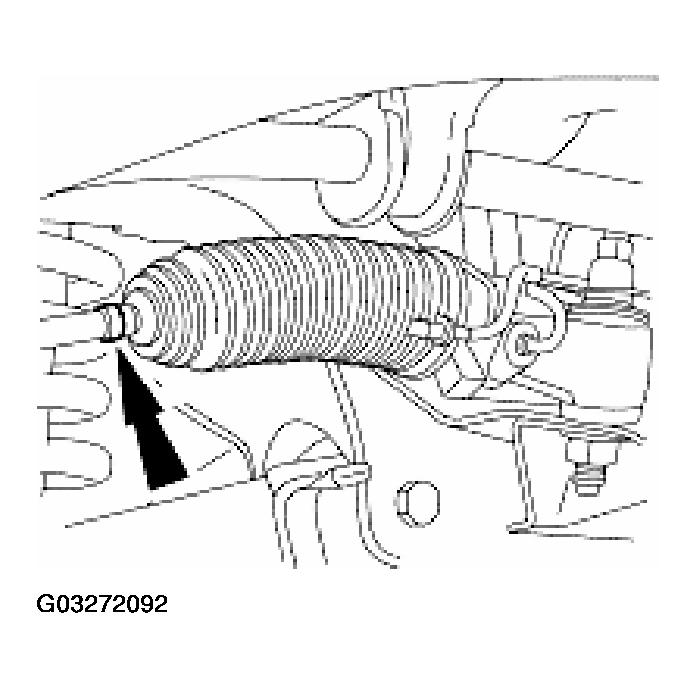

Fig 2: Removing Steering Bellows Clamps

Courtesy of FORD MOTOR CO.

Remove the clamps.
Loosen the nuts.
- Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.

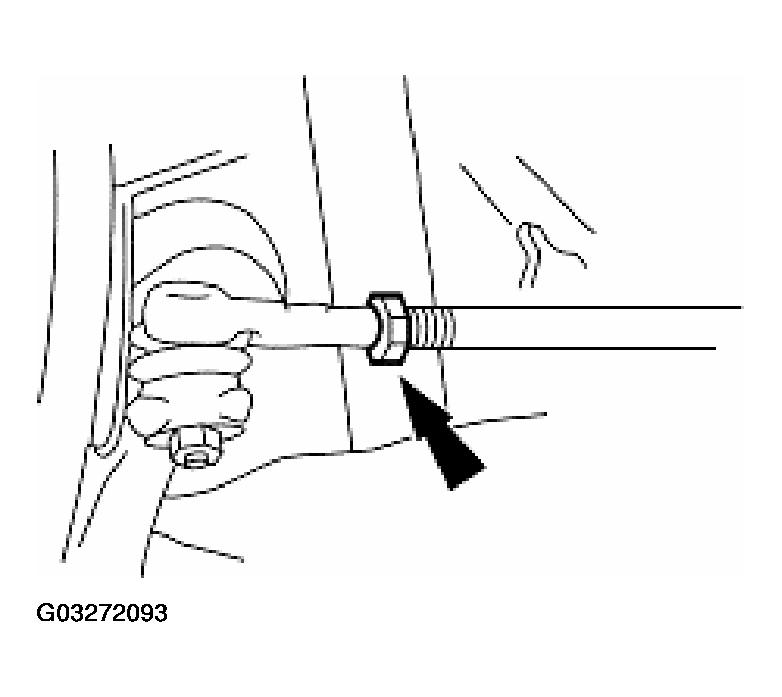

  Fig 3: Loosening Front Wheel Spindle Tie-Rod Nuts
  Courtesy of FORD MOTOR CO.
Rotate the front wheel spindle tie-rods.

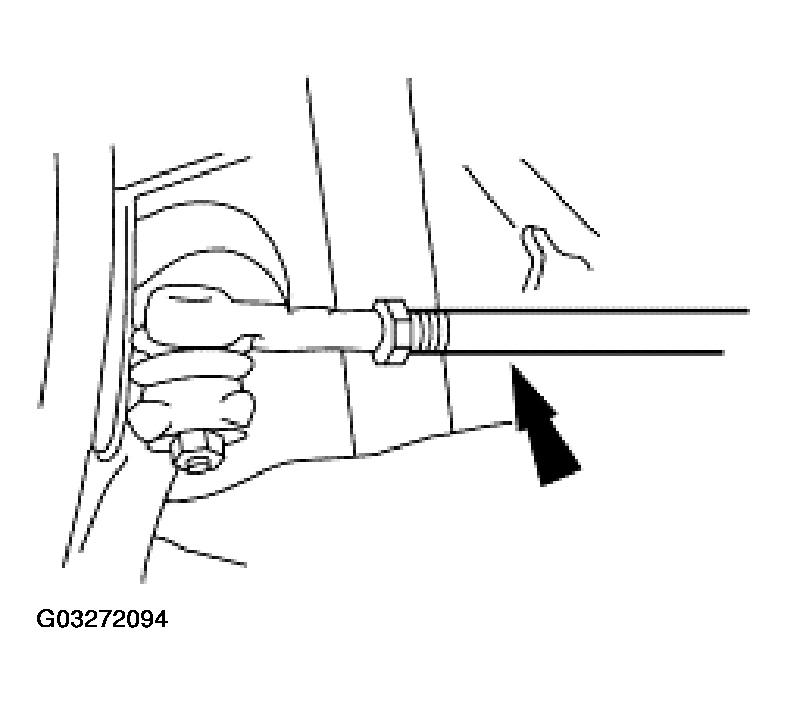

Fig 4: Rotating Front Wheel Spindle Tie-Rods
Courtesy of FORD MOTOR CO.
Tighten the nuts.

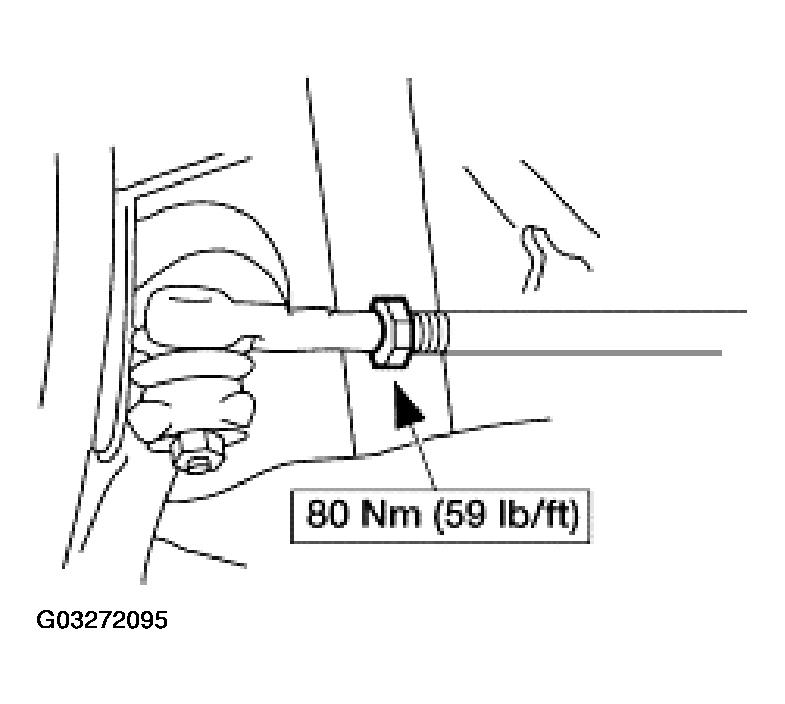

Fig 5: Tightening Front Wheel Spindle Tie-Rod Nuts
Courtesy of FORD MOTOR CO.
Install the clamps.

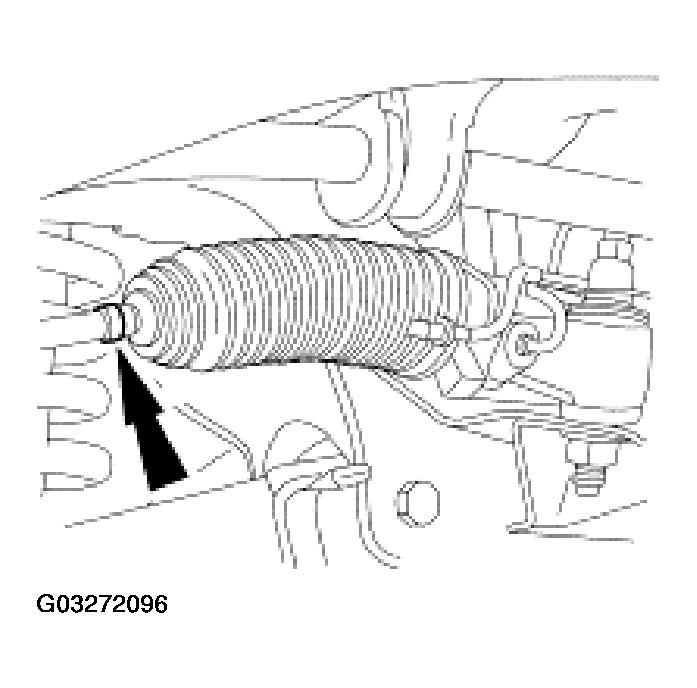

Fig 6: Installing Steering Bellows Clamps
Courtesy of FORD MOTOR CO.
Recheck the toe settings; follow the manufacturer's instructions.
