Main Control Valve Body: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not lose parts when cleaning or servicing.

Thoroughly clean all parts in solvent and blow dry with moisture free compressed air.

CAUTION: Do not stone, file or sand the valves. This will remove the anodized finish and may result in further main control or transmission damage.

After cleaning the main control valve body, carry out the following:
- Inspect all valve and plug bores for scoring or burrs.
- Check all fluid passages for obstructions.
- Inspect all valves and plugs for burrs.
- Inspect all mating surfaces for burrs or distortion.
- Inspect all springs for distortion.
- Check all valves and plugs for free movement in their respective bores.
  - Valves and plugs, when dry, must fall from their own weight into their respective bores.
- Roll the manual valve on a flat surface to check for a bent condition.
Clean and inspect the EPC solenoid screens.

Fig 1: Inspecting EPC Solenoid Screens
Courtesy of FORD MOTOR CO.

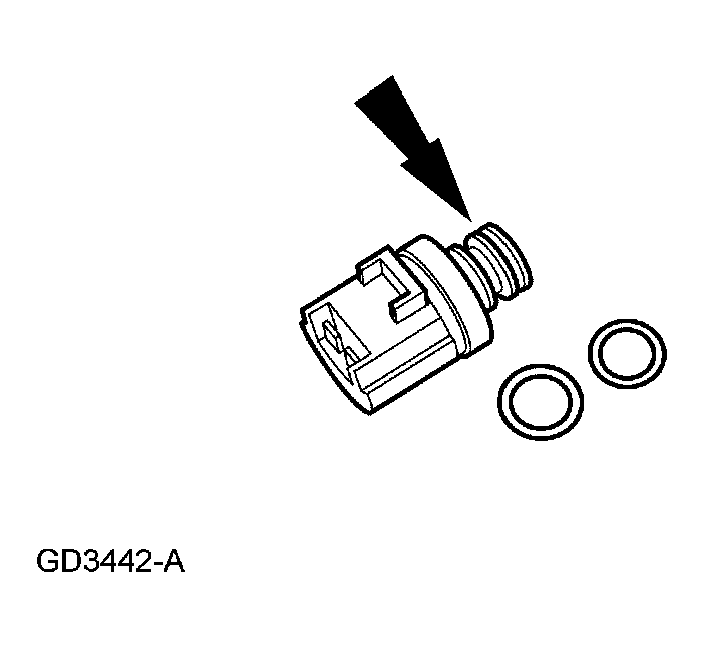

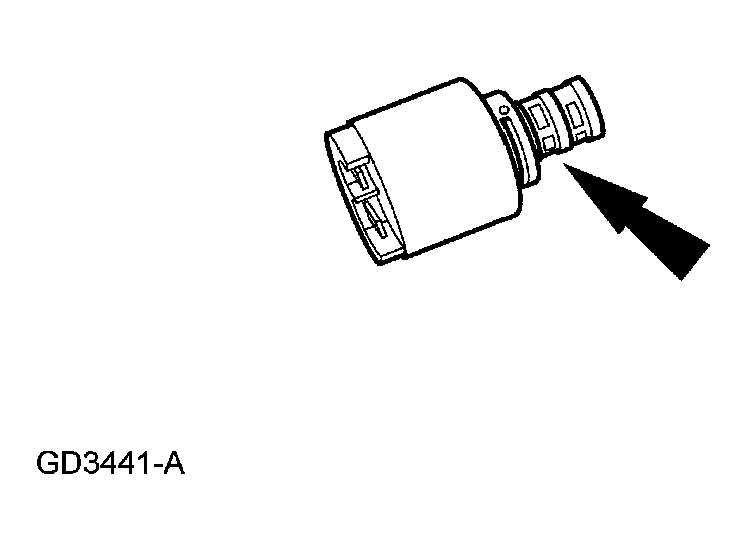

Remove and install new shift solenoid O-rings.

Fig 2: Identifying Shift Solenoid O-Rings
Courtesy of FORD MOTOR CO.

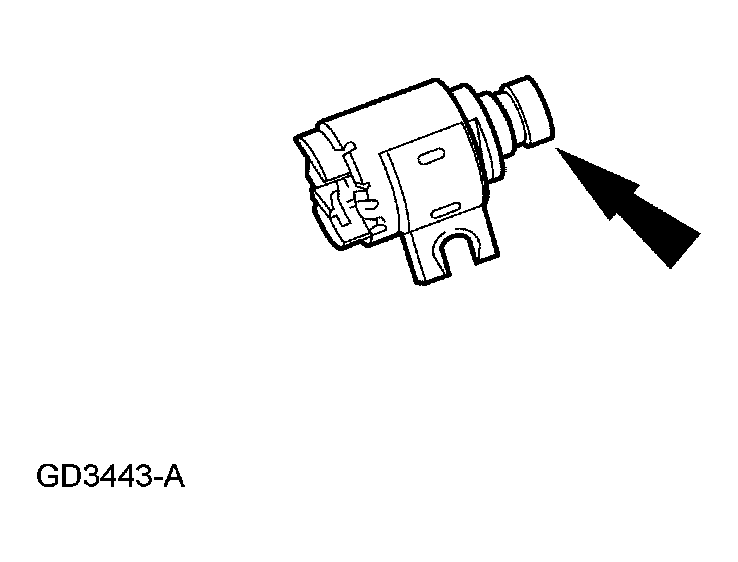

Clean and inspect the TCC solenoid.

Fig 3: Inspecting TCC Solenoid
Courtesy of FORD MOTOR CO.

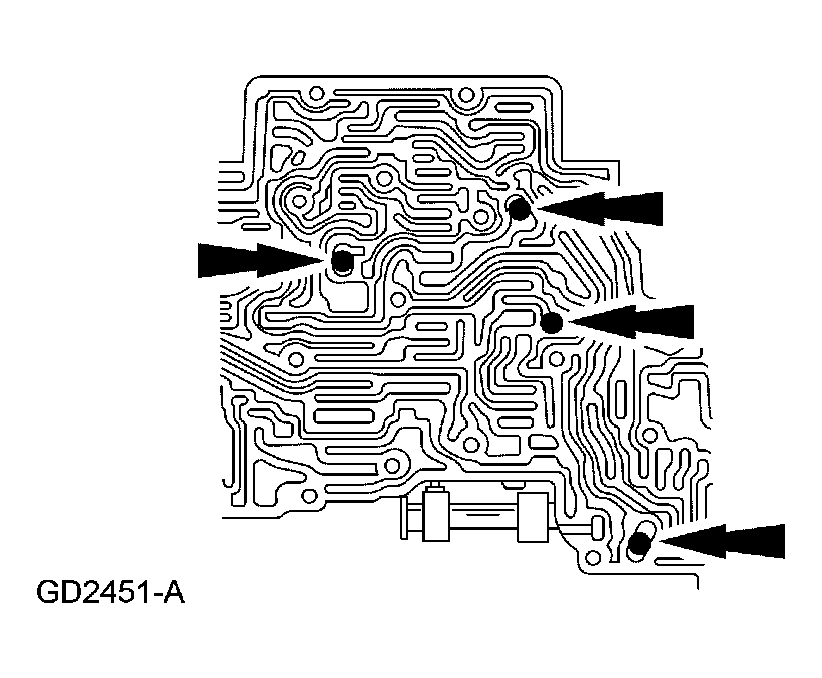

Install the four main control valve body check balls.

Fig 4: Installing Main Control Valve Body Check Balls
Courtesy of FORD MOTOR CO.

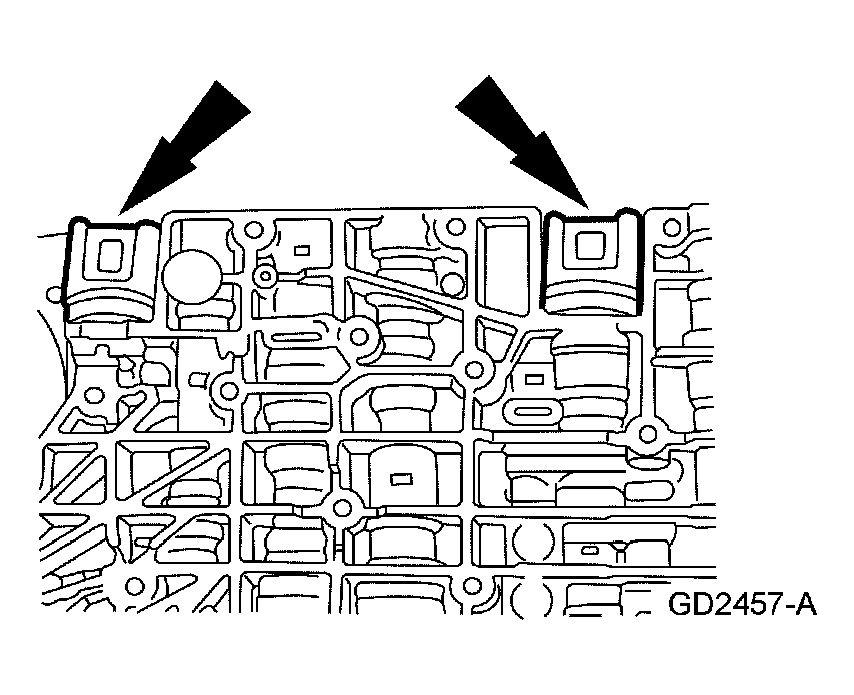

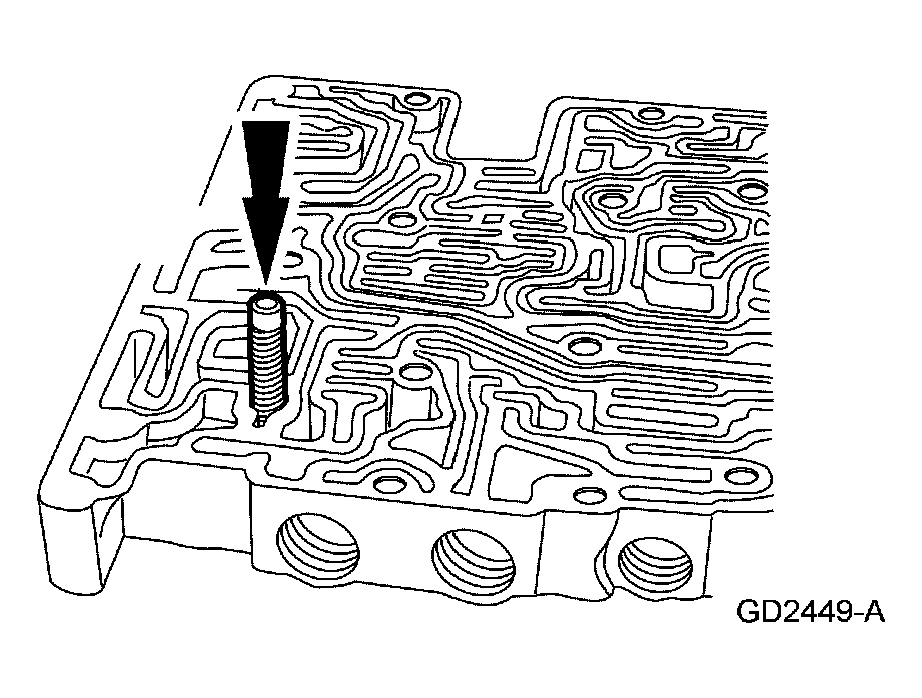

Install the dark color plastic converter relief valve and spring.

Fig 5: Installing Dark Color Plastic Converter Relief Valve And Spring
Courtesy of FORD MOTOR CO.

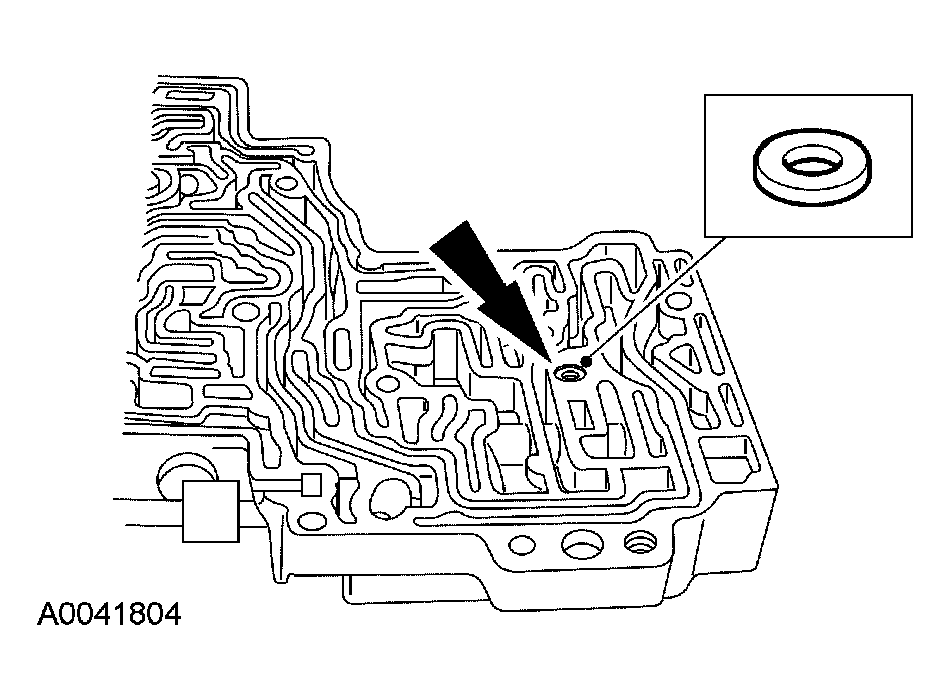

Install the extension housing lube orifice.

Fig 6: Installing Extension Housing Lube Orifice
Courtesy of FORD MOTOR CO.

NOTE: Apply petroleum jelly on the valve body separator plate to hold it in place on the main control.

NOTE: Use new bonded separator plate to main control.

Fig 7: Installing Main Control Valve Body Separator Plate To Main Control

Courtesy of FORD MOTOR CO.

Install the main control valve body separator plate to the main control.

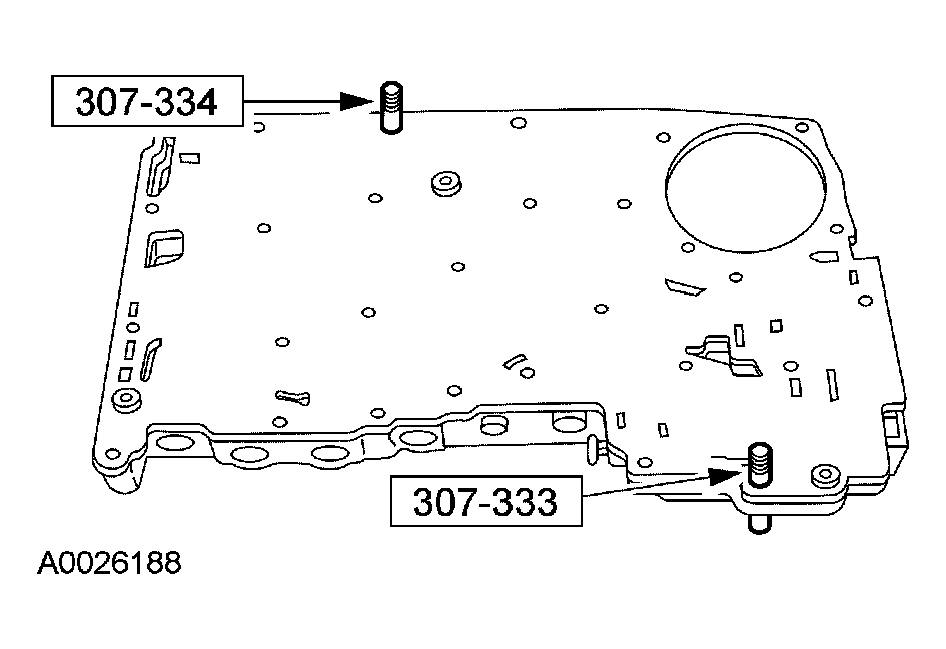

Install the special tools into the main control valve body.

Fig 8: Installing Special Tools Into Main Control Valve Body
Courtesy of FORD MOTOR CO.

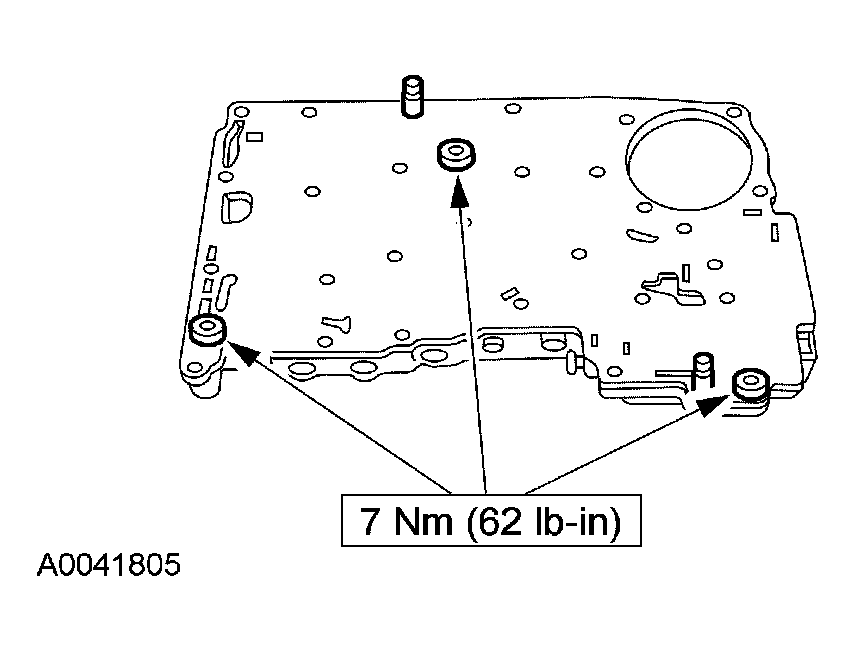

Tighten the screws.

Fig 9: Tightening Screws
Courtesy of FORD MOTOR CO.

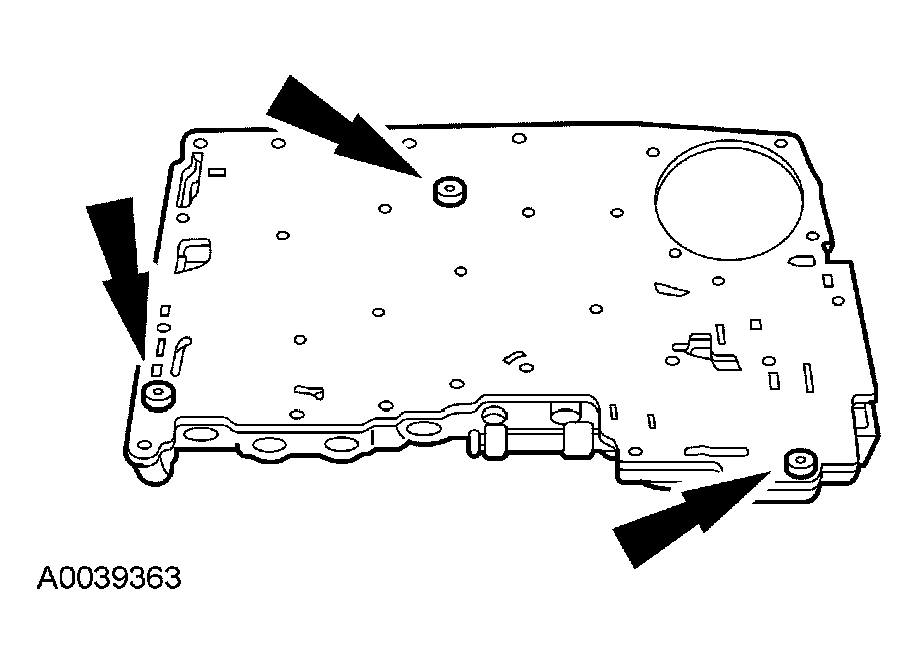

Remove the special tools from the main control valve body.

Fig 10: Removing Special Tools From Main Control Valve Body
Courtesy of FORD MOTOR CO.
Rotate the main control valve body so the valve body separator plate is facing down.

CAUTION: All solenoid electrical connectors must face upward on installation.

NOTE: All shift solenoids are interchangeable.

NOTE: If the TCC valve came out during disassembly, use caution when installing the torque converter clutch solenoid.

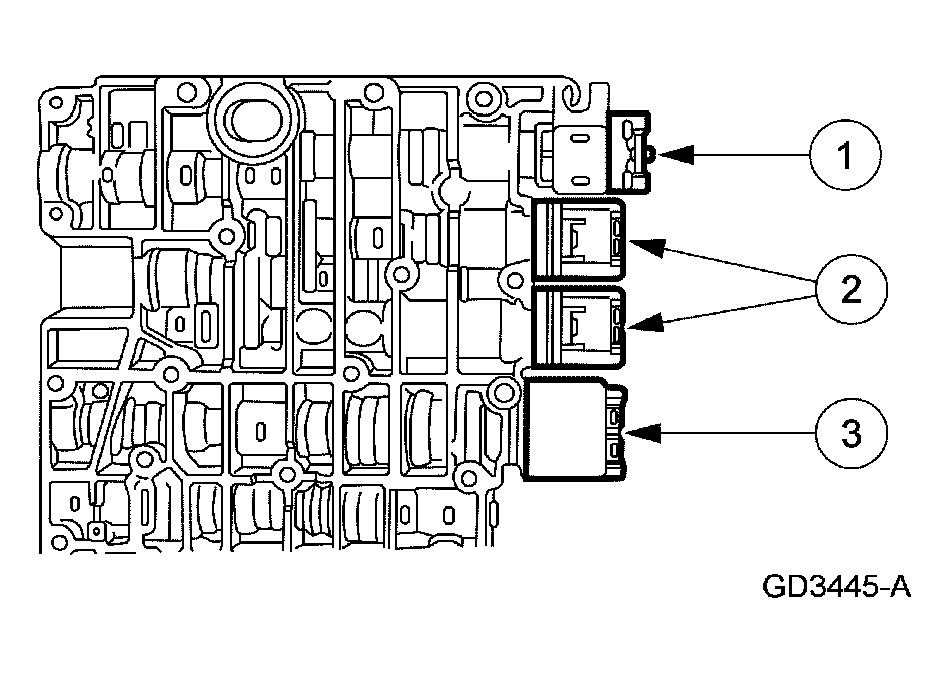

Install the SSB, SSD, TCC and EPC solenoids.
1. Install the TCC solenoid.
2. Install the SSB and SSD solenoids.
3. Install the EPC solenoid.

  Fig 11: Installing SSB, SSD, TCC & EPC Solenoids
  Courtesy of FORD MOTOR CO.

CAUTION: The solenoid clamp must be installed in the TCC and EPC solenoid grooves, shift solenoid pockets and the No. 204 plug.

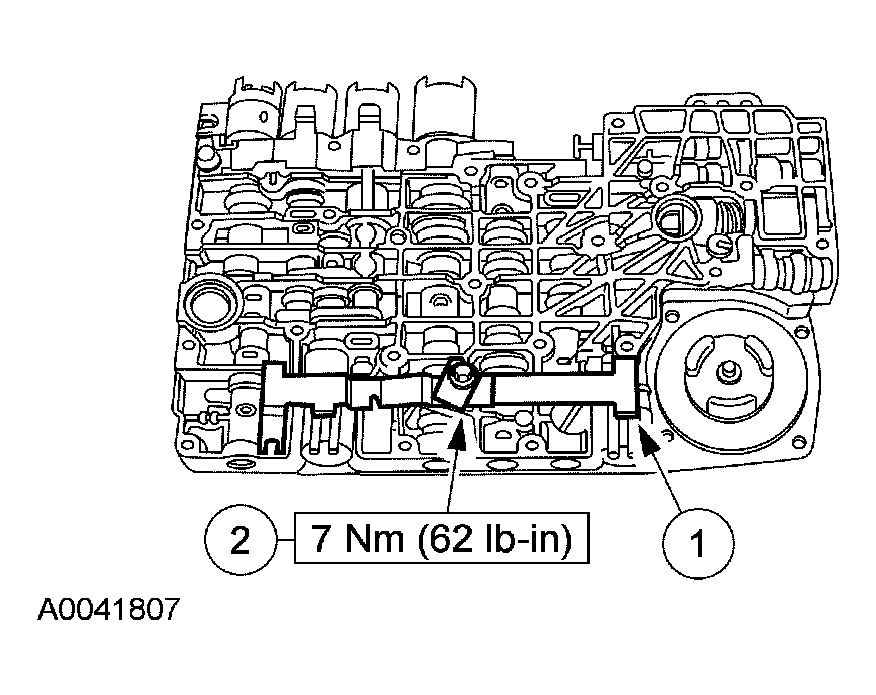

Install the solenoid clamp and the screw.
1. Position the solenoid clamp on the main control valve body.
2. Install the screw.

  Fig 12: Installing Solenoid Clamp And Screw
  Courtesy of FORD MOTOR CO.

CAUTION: The shift solenoid electrical terminals must face up on installation.

NOTE: The shift solenoids are interchangeable.

Fig 13: Installing SSA And SSC Shift Solenoids

Courtesy of FORD MOTOR CO.

Install the SSA and the SSC shift solenoids.
Install the solenoid clamp and the screw.
1. Position the solenoid clamp on the main control valve body.
2. Install the screw.

  Fig 14: Installing Solenoid Clamp And Screw
  Courtesy of FORD MOTOR CO.
