Intermediate Shaft Speed Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and lubricate O-ring with petroleum jelly.
1. Install the intermediate shaft speed sensor into the transmission.
2. Tighten intermediate shaft speed sensor screw.

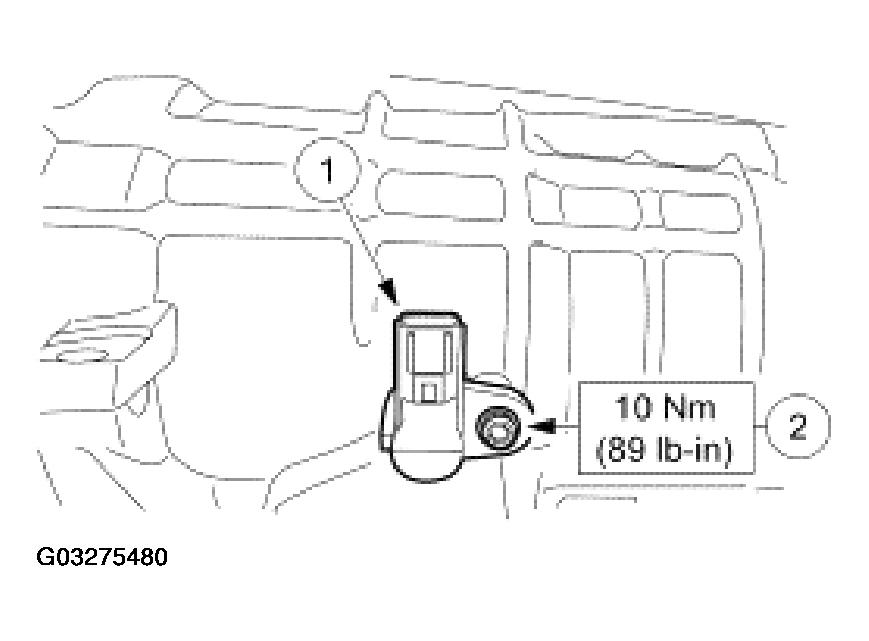

  Fig 1: Tightening Intermediate Shaft Speed Sensor Screw
  Courtesy of FORD MOTOR CO.
Connect intermediate shaft speed sensor electrical connector.

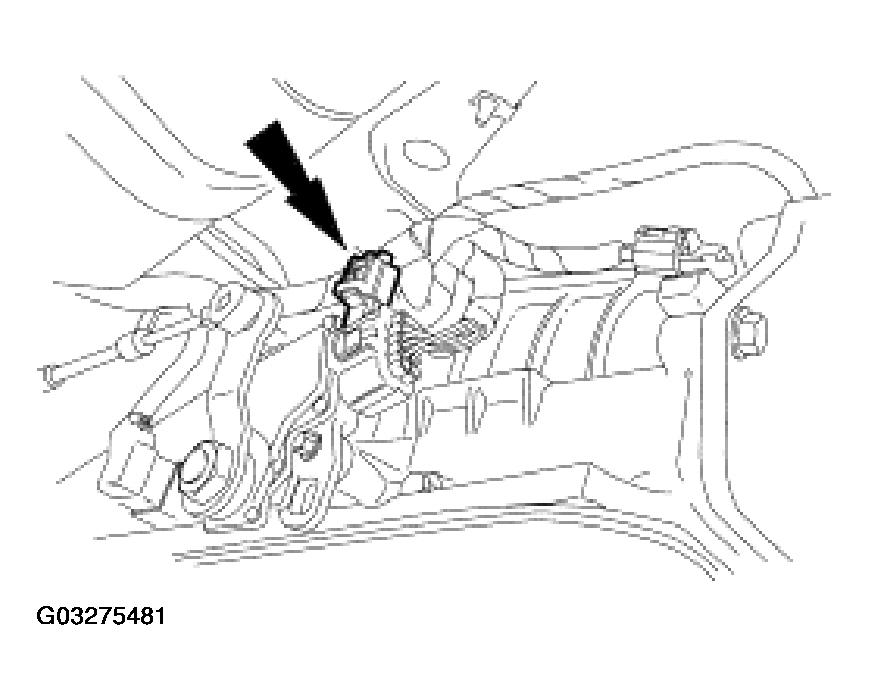

Fig 2: Connecting Intermediate Shaft Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
