Intermediate Shaft Speed Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect intermediate shaft speed sensor electrical connector.

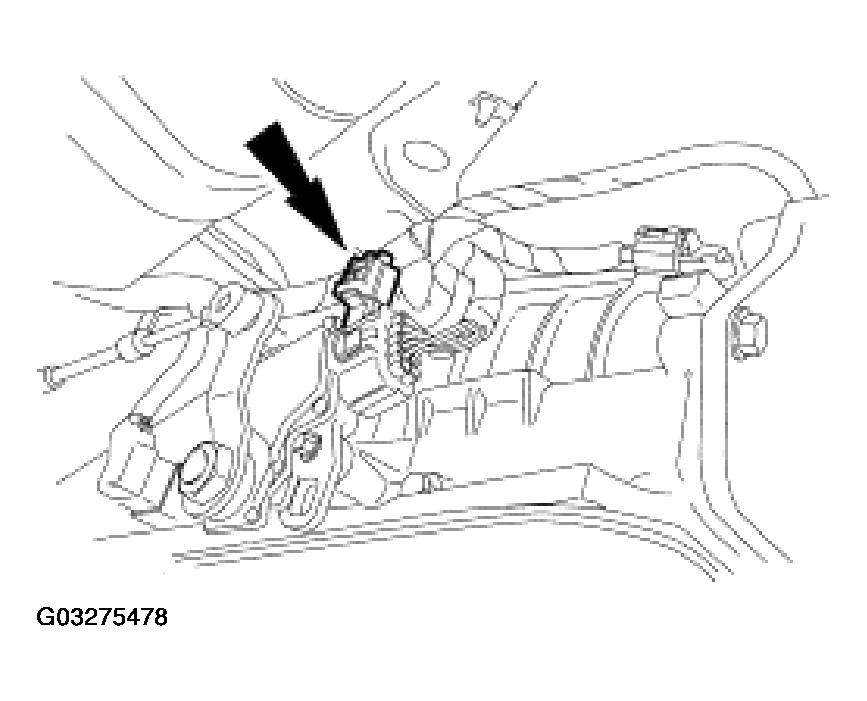

Fig 1: Disconnecting Intermediate Shaft Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove intermediate shaft speed sensor.
1. Remove the intermediate shaft speed sensor screw.
2. Remove the intermediate shaft speed sensor from the transmission.
  - Inspect the intermediate shaft speed sensor O-ring for damage. If damaged, install a new O-ring.

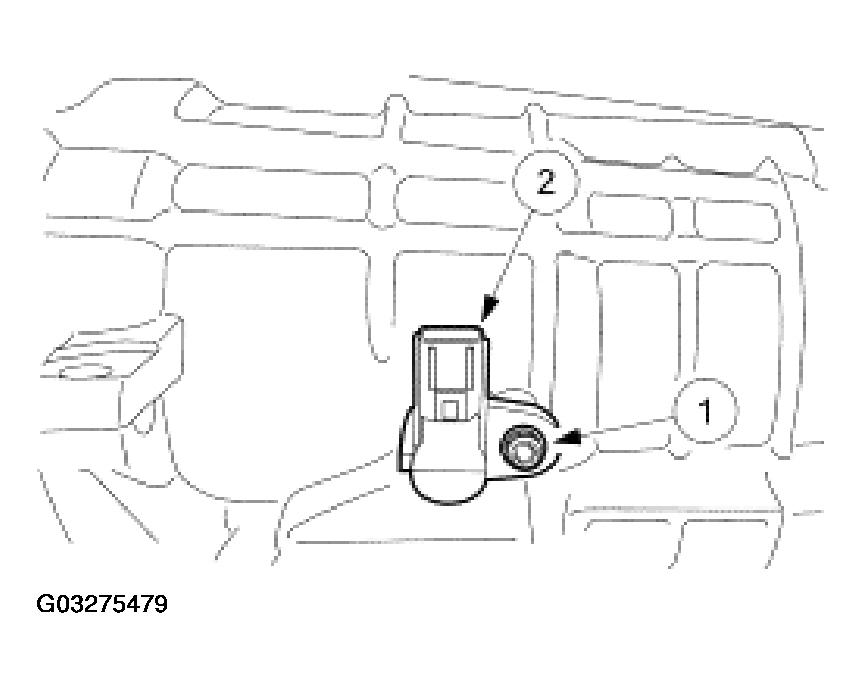

    Fig 2: Removing Intermediate Shaft Speed Sensor
    Courtesy of FORD MOTOR CO.
